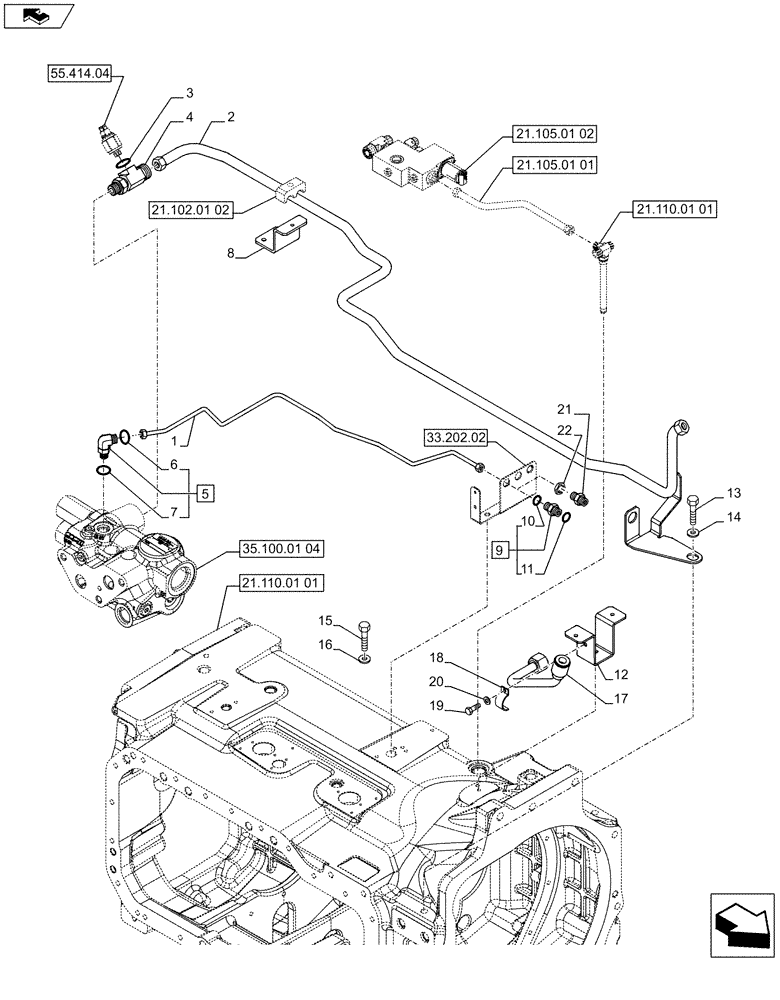

Запчасти Case IH PUMA 230 (41.200.02) - POWER STEERING DELIVERY AND RETURNS PIPES (41) - STEERING

1

87718490

HYD TUBE

1шт.

2

84291585

HYD TUBE

Supply to Steering Motor, Serial Range: -C7089

1шт.

2

84426423

HYD TUBE

Supply to Steering Motor, Start Serial: D7089

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

4

87575165

HYD CONNECTOR,1"-14 x M8 x 1.5

1шт.

5

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Contains Ref. 6,7

1шт.

6

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

7

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

8

87608302

BRACKET

1шт.

9

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

Contains Ref. 10,11, Serial Range: -C7099

1шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

, Serial Range: -C7099

1шт.

11

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

, Serial Range: -C7099

1шт.

12

84295347

BRACKET

Steering Return

1шт.

13

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.

14

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

15

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

84197458

HYD TUBE

1шт.

18

5193286

BRACKET

1шт.

19

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

21

86639059

UNION,9/16"-18 ORFS, Blkd

, Start Serial: D7099

1шт.

22

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

, Start Serial: D7099

1шт.
