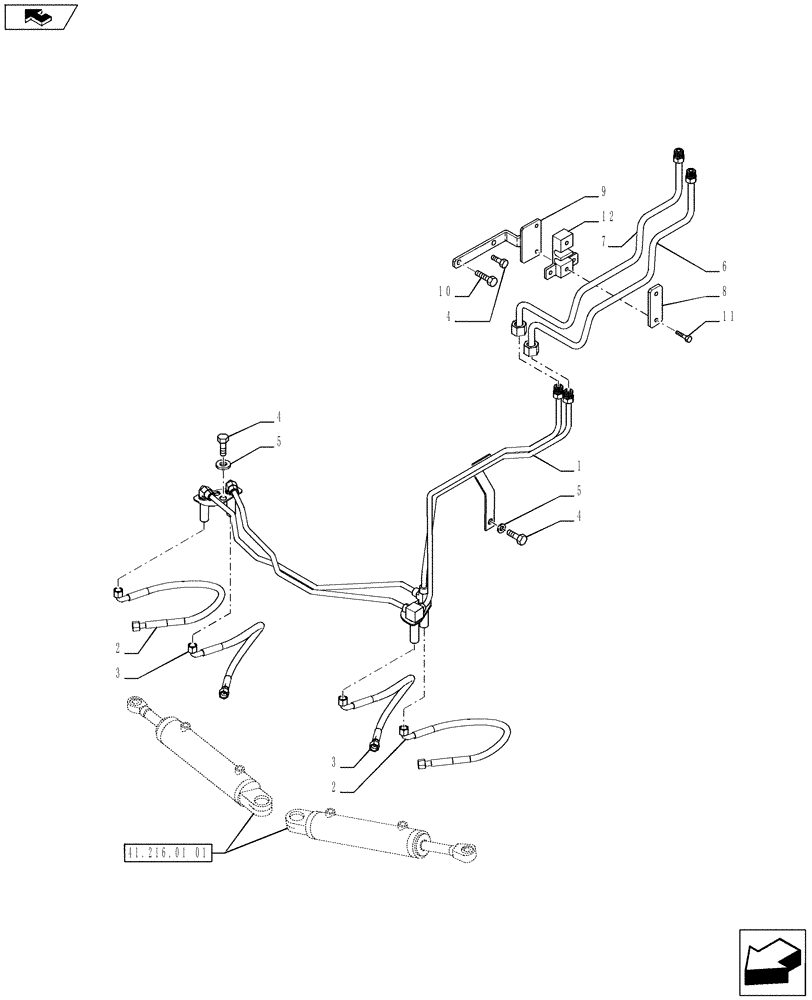

Запчасти Case IH PUMA 230 (41.200.01) - STEERING CYLINDER PIPES AND POWER STEERING PIPES (41) - STEERING

1

87699821

PRESSURE PIPE

1шт.

2

82039381

HOSE,9.53mm ID x 700mm L, SAE 100R16

2шт.

3

82039410

HOSE,9.53mm ID x 750mm L, SAE 100R16

2шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

87387918

PIPE

1шт.

7

87387917

PIPE

1шт.

8

82029227

CLAMP

1шт.

9

87539835

BRACKET

1шт.

10

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

11

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

1шт.

12

82029226

CLAMP

1шт.
