Запчасти Case IH PUMA 230 (37.140.0501) - REAR BALLAST FOR ADJUSTABLE REAR WHEELS - REAR BALLAST ADAPTATION RINGS 1000 KG (VAR.743029) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

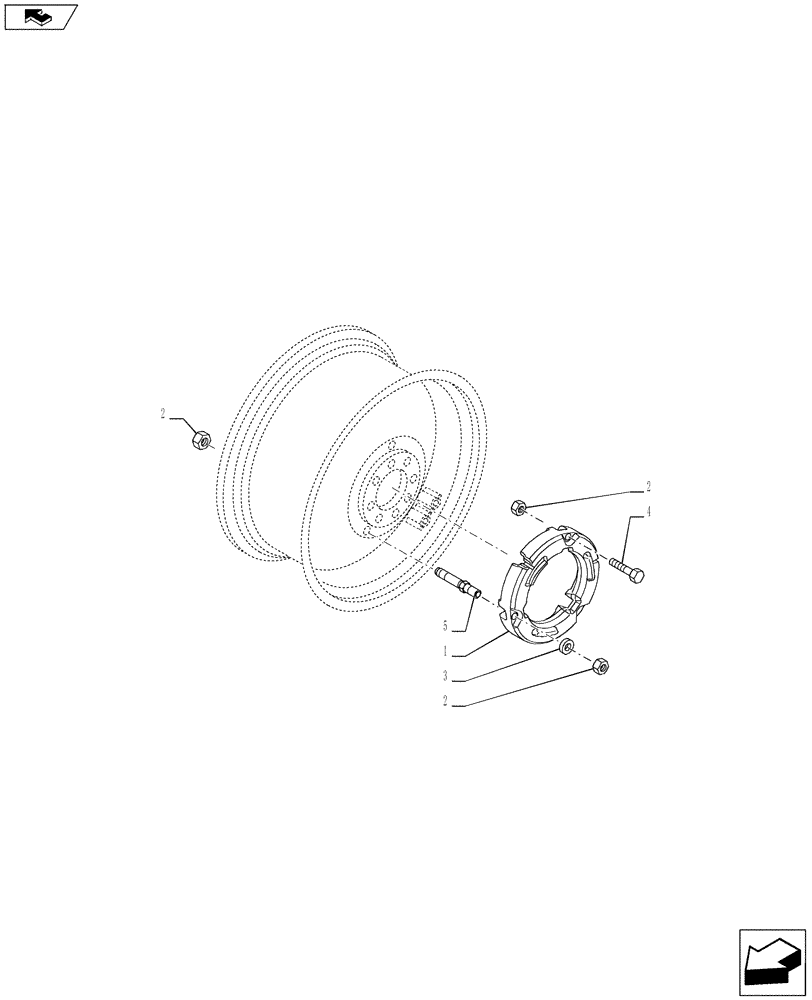

Схема запчастей Case IH PUMA 230 - (37.140.0501) - REAR BALLAST FOR ADJUSTABLE REAR WHEELS - REAR BALLAST ADAPTATION RINGS 1000 KG (VAR.743029) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
3
1
2
2
2
4
home

Артикул

Название

Примечание

Количество

1

87713987

WHEEL WEIGHT,250Kg

(250 KG-550 LBS)

1шт.

2

10790524

NUT,M16 x 1.5

18шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

16x40x5

18шт.

4

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

6шт.

5

87688991

STUD,M16 x 1.5

6шт.

Выбрано товаров: 5
