Запчасти Case IH PUMA 230 (37.106.02) - HYDRAULIC AUTOMATIC PICK UP HITCH WITH DRAWBAR - CONTROL LEVER (VAR.728248) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

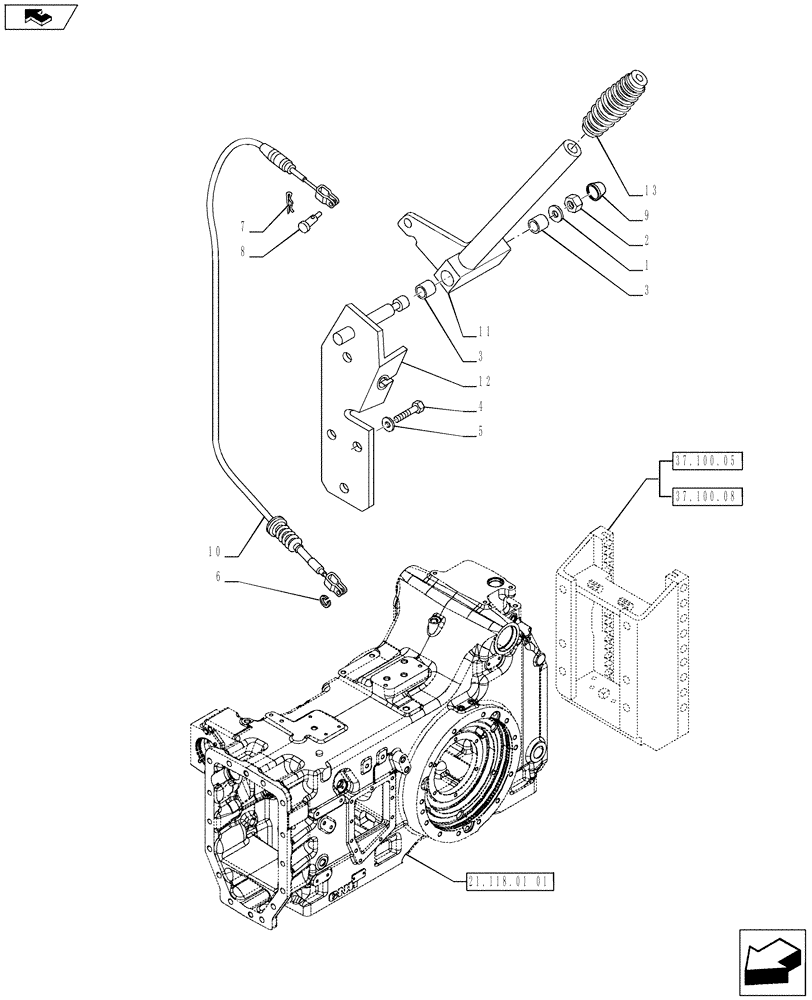

Схема запчастей Case IH PUMA 230 - (37.106.02) - HYDRAULIC AUTOMATIC PICK UP HITCH WITH DRAWBAR - CONTROL LEVER (VAR.728248) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
12
5
9
3
6
21.118.01 01
home
37.100.08
37.100.05
1
11
10
7
3
13
4
2
8

Артикул

Название

Примечание

Количество

1

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

WASHER

1шт.

2

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

LOCK NUT

1шт.

3

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

BUSHING

2шт.

4

13632821

CAPTIVE WASHER SCREW,M8 x 25mm

SCREW

3шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

WASHER

3шт.

6

81822628

CIRCLIP,1/2"

CIRCLIP

1шт.

7

83957394

PIN,0.072" x 0.82"

COTTER PIN

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

PIN

1шт.

9

82012814

CAP,M10

CAP

1шт.

9

87330878

CAP,9.50mm ID x 13.30

CAP

1шт.

10

87308075

CABLE,1860mm L

CABLE

1шт.

11

87665892

LEVER

LEVER

1шт.

12

87531029

SUPPORT

SUPPORT

1шт.

13

87666034

HANDLE GRIP

HANDLE GRIP

1шт.

Выбрано товаров: 14
