(37.100.08) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING (38 MM) - SLIDER TOW HOOK - GERMANY (VAR.720897)

Запчасти Case IH PUMA 230 (37.100.08) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING (38 MM) - SLIDER TOW HOOK - GERMANY (VAR.720897) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

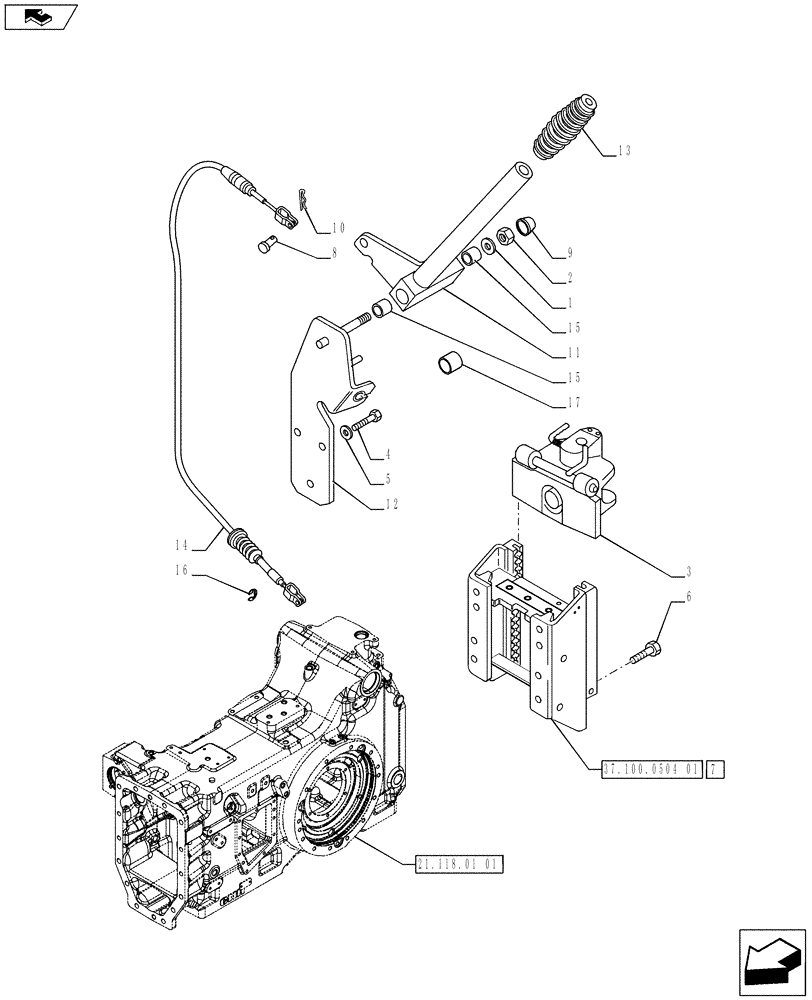

Схема запчастей Case IH PUMA 230 - (37.100.08) - SLIDER TOW HOOK WITH AUTO SWIVEL COUPLING (38 MM) - SLIDER TOW HOOK - GERMANY (VAR.720897) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
11
14
7
21.118.01 01
home
37.100.0504 01
15
9
5
15
6
2
16
17
13
1
10
8
3
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

WASHER

1шт.

2

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

LOCK NUT

1шт.

3

82029387

TOW HOOK

TOW HOOK

1шт.

4

13632821

CAPTIVE WASHER SCREW,M8 x 25mm

SCREW

3шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

WASHER

3шт.

6

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

BOLT

8шт.

7

84351183

FRAME

FRAME, ASSY

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

PIN

1шт.

9

82012814

CAP,M10

CAP

1шт.

10

353467S36

COTTER PIN,0.072" OD x 0.82"

COTTER PIN

1шт.

11

87665892

LEVER

LEVER

1шт.

12

87531029

SUPPORT

SUPPORT

1шт.

13

87666034

HANDLE GRIP

HANDLE GRIP

1шт.

14

87308076

CABLE,2300mm L

CABLE

1шт.

15

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

BUSHING

2шт.

16

9635806

CIRCLIP,Ext., 0.392" Dia

CIRCLIP

1шт.

17

87330878

CAP,9.50mm ID x 13.30

CAP

1шт.
