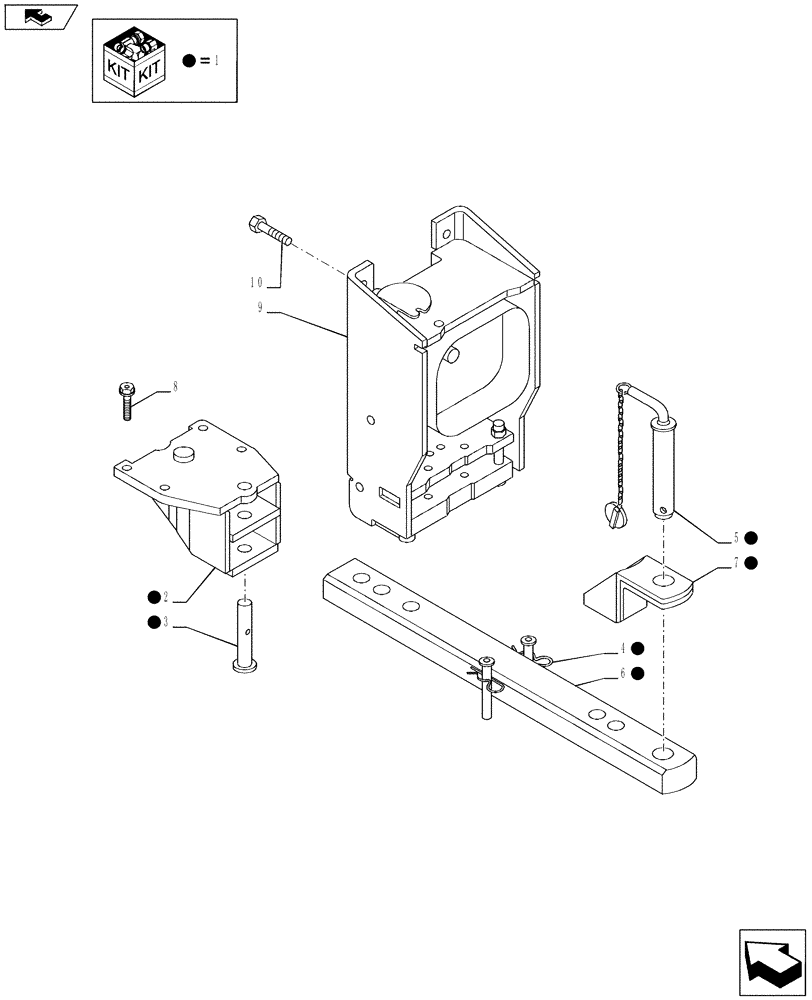

Запчасти Case IH PUMA 230 (37.100.06) - INDEPENDENT SWINGING DRAWBAR WITH CLEVIS (VAR.720912) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84177413

SWINGING DRAWBAR

ASSY, Contains Ref. 2-7

1шт.

2

84177456

SUPPORT

1шт.

3

84191362

PIN

1шт.

4

84191363

PIN

2шт.

5

84191368

CLEVIS PIN

1шт.

6

84191364

SWINGING DRAWBAR

1шт.

7

84191366

DRAW HOOK

1шт.

8

87561332

BOLT,Flng, M18 x 1.5 x 55mm, Cl 12.9

4шт.

9

84177395

HITCH BRACKET

1шт.

10

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.
