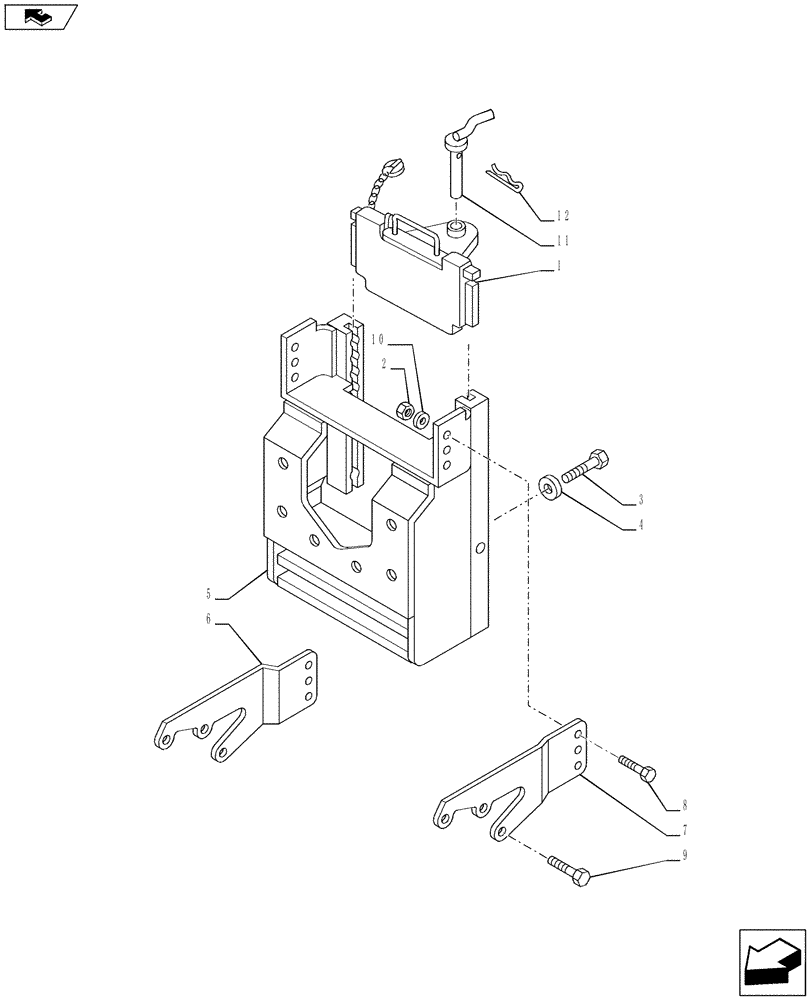

Запчасти Case IH PUMA 230 (37.100.0507) - SLIDER TOW HOOK WITH FIXED COUPLING - DRAWBAR SUPPORT (VAR.720928) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5199458

TOW HOOK

ASSY

1шт.

2

81814295

NUT,5/8"-11, G5

6шт.

3

81827592

BOLT,Hex, 3/4" - 10 x 2", Gr 8

6шт.

4

83917225

LOCK WASHER,Helical Spring, 0.766" ID x 1.285" OD x 0.226"

6шт.

5

82027020

HOOK

ASSY

1шт.

6

82026943

BRACKET

RH

1шт.

7

82026942

BRACKET

LH

1шт.

8

81827627

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

6шт.

9

81843841

BOLT,Hex, 5/8" - 11 x 3", Gr 5

6шт.

10

83918449

LOCK WASHER

6шт.

11

82016898

HITCH PIN

ASSY

1шт.

12

82000094

SPRING,40mm OD x 142mm L

1шт.
