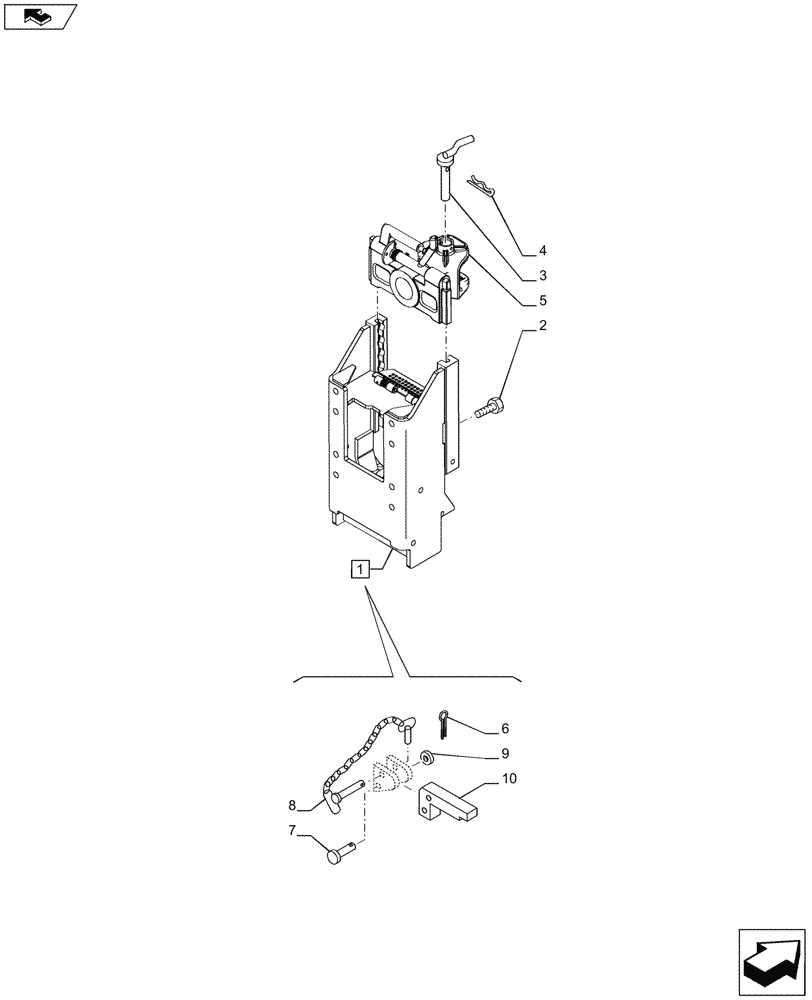

Запчасти Case IH PUMA 230 (37.100.0503) - SLIDER TOW HOOK W/SWIVEL COUPLING & PITON, LESS SWINGING DRAWBAR - FRENCH TYPE (VAR.720887) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84351216

FRAME

ASSY, Contains Ref. 7-11

1шт.

2

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

3

82018421

PIN

1шт.

4

82003071

SPRING

1шт.

5

82027298

COUPLING

1шт.

6

281072

COTTER PIN,5/16" Dia x 3"

1шт.

7

86516223

PIN,30mm OD x 89mm L

1шт.

8

86516226

PIN,20mm OD x 100mm L

1шт.

9

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

10

84385418

LATCH HOOK

1шт.
