(37.100.0501) - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, (ITALY) - TOW HITCH (VAR.720928)

Запчасти Case IH PUMA 230 (37.100.0501) - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, (ITALY) - TOW HITCH (VAR.720928) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

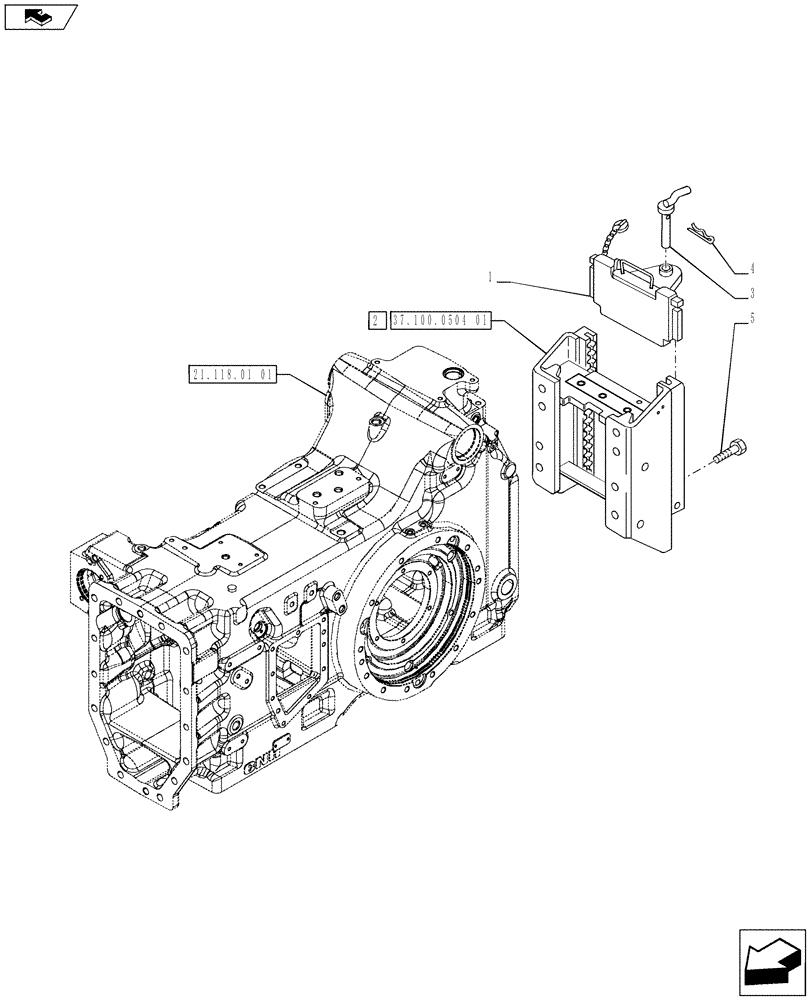

Схема запчастей Case IH PUMA 230 - (37.100.0501) - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, (ITALY) - TOW HITCH (VAR.720928) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
4
5
21.118.01 01
home
37.100.0504 01
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199458

TOW HOOK

1шт.

2

84351183

FRAME

ASSY

1шт.

3

82016898

HITCH PIN

1шт.

4

82000094

SPRING,40mm OD x 142mm L

1шт.

5

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

Выбрано товаров: 5
