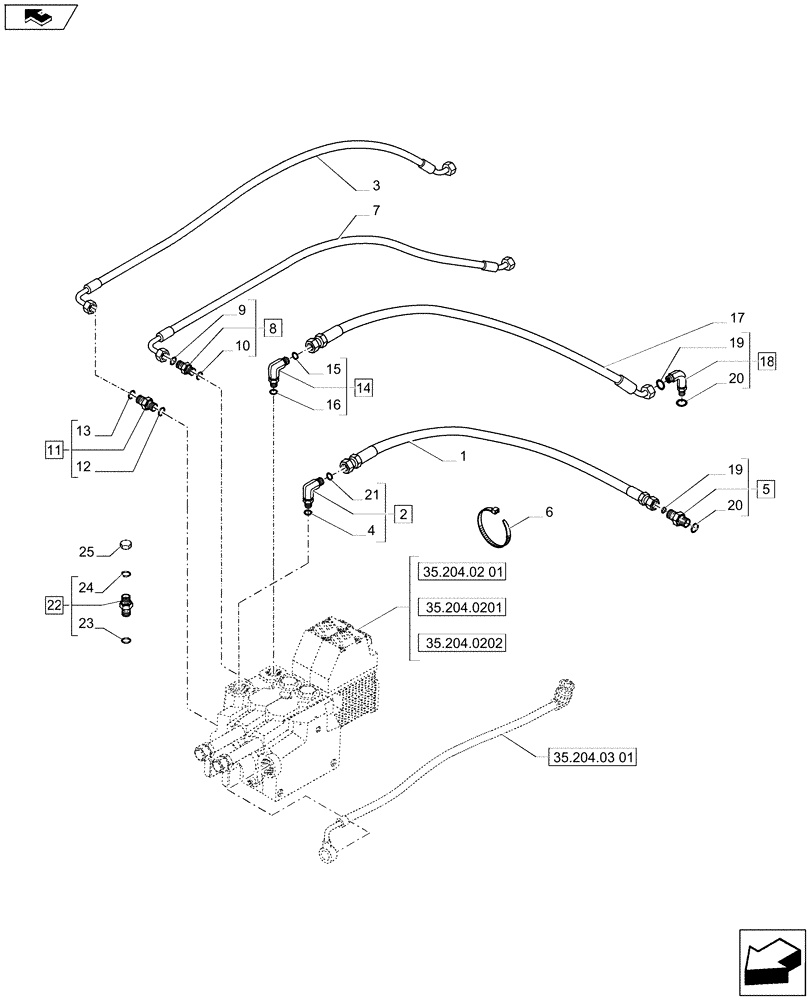

Запчасти Case IH PUMA 230 (35.204.03[02]) - ELECTRONIC MID MOUNTED VALVES - PIPES (VAR.728108-728109-728110) (35) - HYDRAULIC SYSTEMS

1

87616561

HOSE

240 BAR SUPPLY

1шт.

1

87568645

HYDRAULIC HOSE,15.88mm ID x 1080mm L, SAE 100R2

240 BAR SUPPLY

1шт.

Parts Shown Are Also Available in DIA Kit 718763054

1шт.

2

5194728

90 ELBOW

Contains Ref. 4,21

1шт.

3

87616565

HOSE

LOAD SENSE

1шт.

3

87314897

HOSE,6.35mm ID x 980mm L, SAE 100R2

LOAD SENSE

1шт.

Parts Shown Are Also Available in DIA Kit 718763054

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Contains Ref. 19,20

1шт.

6

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

7

84192419

HOSE,9.53mm ID x 850mm L, SAE 100R1

24 BAR SUPPLY, 700MM

1шт.

7

84389501

HOSE ASSY.,10mm ID x 850mm L, SAE 100R2

240 BAR SUPPLY, 850 MM

1шт.

Parts Shown Are Also Available in DIA Kit 718763054

1шт.

7

84231195

HOSE

24 BAR SUPPLY, 690 MM

1шт.

Parts Shown Are Also Available in DIA Kit 718763074

1шт.

8

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Contains Ref. 9,10

1шт.

9

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

11

5185045

HYD CONNECTOR

Contains Ref. 12,13

1шт.

12

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

Contains Ref. 15,16

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

17

84192420

HOSE,9.53mm ID x 700mm L, SAE 100R1

1шт.

17

87520009

FLEXIBLE HOSE

Servo Return

1шт.

Parts Shown Are Also Available in DIA Kit 718763054

1шт.

17

87616564

HOSE

Servo Return

1шт.

Parts Shown Are Also Available in DIA Kit 718763074

1шт.

18

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Contains Ref. 19,20

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

5196844

HYD CONNECTOR

Contains Ref. 23,24

1шт.

23

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

24

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

25

82016749

PLUG,11/16-16 ORFS

1шт.
