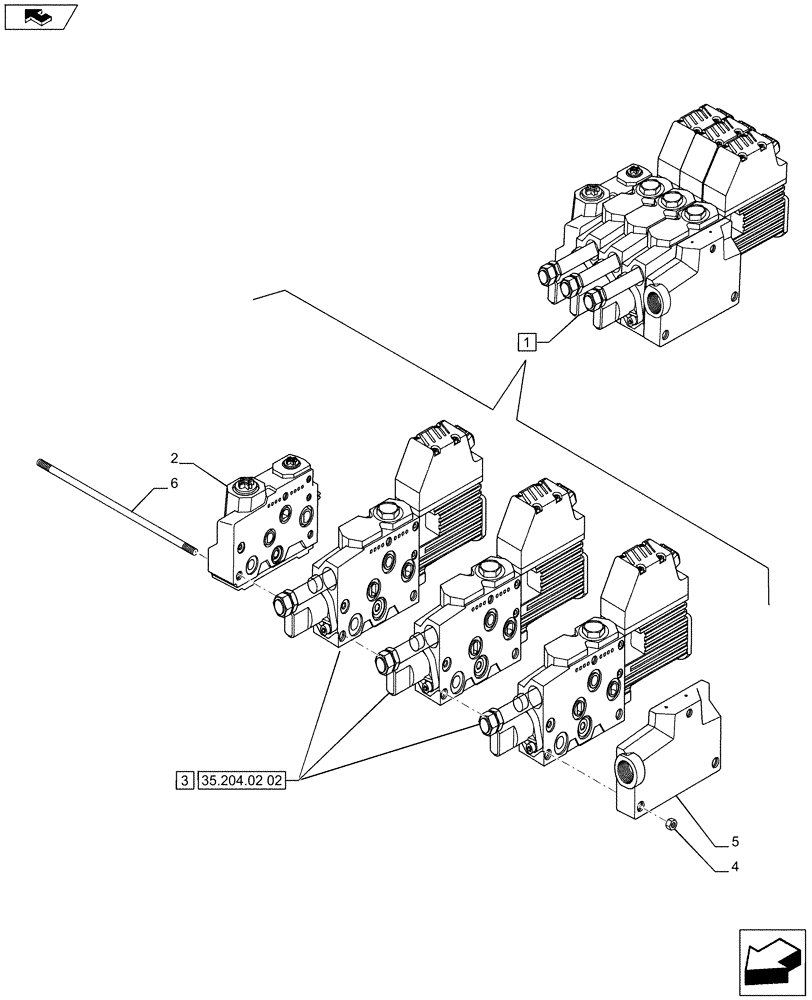

Запчасти Case IH PUMA 230 (35.204.0201) - ELECTRONIC MID MOUNTED VALVES 3 SLICE - CONTROL VALVE (VAR.728109) (35) - HYDRAULIC SYSTEMS

1

84214465

CONTROL VALVE

Contains Ref. 2-6

1шт.

84214465R

REMAN-HYD VALVE

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230 CVT all (12/10-)

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

2

87744557

MANIFOLD

1шт.

3

84214463

ELECTRO-VALVE

3шт.

84214463R

REMAN-HYD VALVE

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230 all (12/10-)

3шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

4

87750999

END PLATE

HYDRAULIC VALVE

1шт.

5

5195169

NUT,M8

3шт.

6

87520006

TIE-ROD

3шт.
