Запчасти Case IH PUMA 230 (35.204.01[07A]) - CONTROL VALVE SECTION, HITCH, COMPONENTS - D7414 (35) - HYDRAULIC SYSTEMS

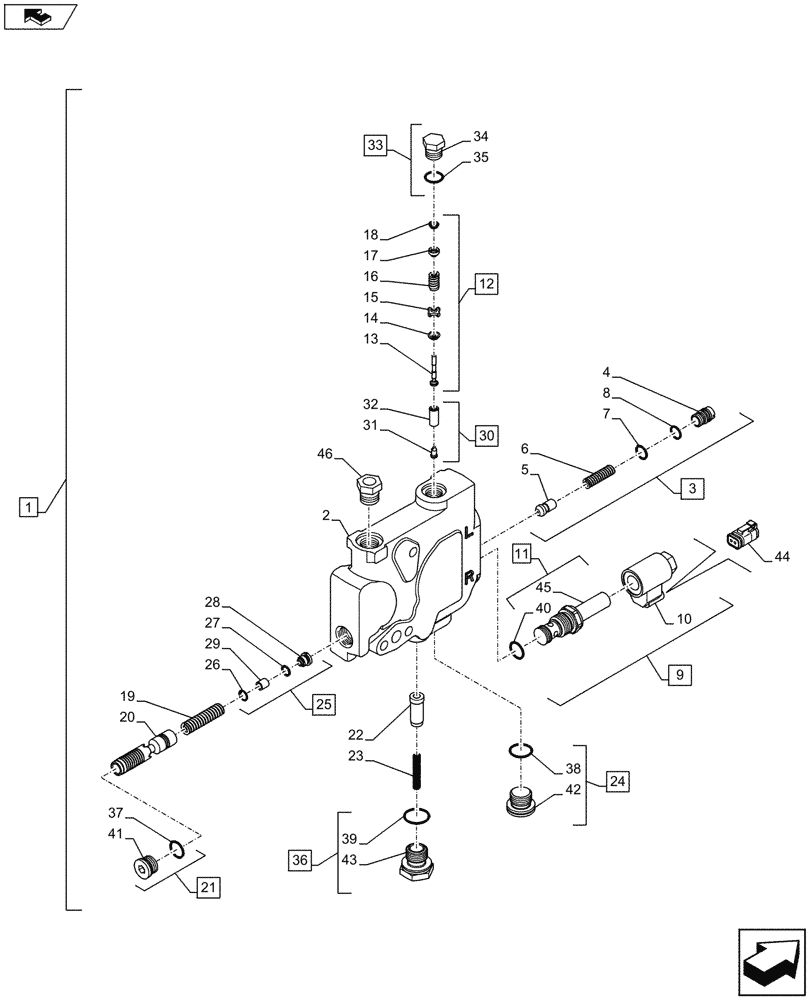

Схема запчастей Case IH PUMA 230 - (35.204.01[07A]) - CONTROL VALVE SECTION, HITCH, COMPONENTS - D7414 (35) - HYDRAULIC SYSTEMS
6
28
26
38
home
24
2
11
45
32
18
23
40
21
44
20
9
42
37
1
31
15
22
41
17
29
7
19
10
36
25
13
3
5
46
34
14
27
35
4
43
16
8
30
33
12
39

Артикул

Название

Примечание

Количество

1

47434177

HYD VALVE SECTION

ASSY, Hitch Valve, Incl 2 - 46

1шт.

1

47434177R

REMAN-HYD VALVE

Hitch Valve

1шт.

1

47434177C

CORE-VALVE HYD

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

3

1542563C1

KIT

ASSY, Logic, Incl 4 - 8

1шт.

4

1994580C1

PLUG

Logic Check

1шт.

5

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

Logic Check

1шт.

6

1994581C1

SPRING,6.1mm OD x 31.1mm L

Logic Check

1шт.

7

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

8

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

Back-up

1шт.

9

47379783

SOLENOID,1.8 Ohm, 100 Hz

ASSY, Valve, Proportional Flow Control, Incl 10, 11

2шт.

10

87608473

COIL

Solenoid, Hitch

2шт.

11

47379782

SOLENOID,M19 x 1 x 115mm L

ASSY, Cartridge, Incl 40, 45

2шт.

12

337425A3

VALVE, PRESSURE RELI

ASSY, 3200 PSI, Incl 13 - 18

1шт.

13

337427A1

VALVE POPPET,2.93/3.5mm ID x 4.17/8mm OD x 37.25mm L

Relief

1шт.

14

337428A1

SEAT

Relief

1шт.

15

337430A1

GUIDE

Spring

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Relief, Incl in 12

1шт.

17

NSS

NOT SOLD SEPARAT

Stop, Spring, Incl in 12

1шт.

18

337433A1

COMPRESSION SPRING,Compression, 13.21mm OD x 12.289mm L

Anti-Cav, Conical

1шт.

19

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression, Long

1шт.

20

84187247

SPOOL,15.9mm ID x 19.32mm OD x 96mm L

Pressure

1шт.

21

86625138

PLUG,7/18" - 14

ASSY, Incl 37, 41

1шт.

22

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

23

87648596

SPRING,3.81mm OD x 23.19mm L

Aux. Signal Check

1шт.

24

221578A1

PLUG,M18 x 1.5 ORB

ASSY, Incl 38, 42

1шт.

25

87619813

CHECK VALVE,1/2" - 20

ASSY, Incl 26 - 29

1шт.

26

100-2125

SNAP RING,M25, Int

1шт.

27

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

Valve, Check, Incl in 25

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet, Orifice, Incl in 25

1шт.

30

87518992

PLUG

ASSY, Orifice, Incl 31 - 32

1шт.

31

133519C1

SCREEN

1шт.

32

NSS

NOT SOLD SEPARAT

Plug, Orifice, Incl in 30

1шт.

33

385520A1

PLUG,Hex, 13.05mm ID x 22.23mm OD x 23.5mm L

ASSY, Check Valve, Incl 34 - 35

1шт.

34

385521A1

PLUG

Check Valve

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

87648607

PLUG,M12 x 1.5 ORB

ASSY, Load Sense, Incl 39 - 43

1шт.

37

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

39

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

40

86637739

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

1шт.

41

NSS

NOT SOLD SEPARAT

Plug, Incl in 21

1шт.

42

NSS

NOT SOLD SEPARAT

Plug, Incl in 24

1шт.

43

NSS

NOT SOLD SEPARAT

Plug, Incl in 36

1шт.

44

87695582

ELEC CONNECTOR,Female, 2 Pole

2шт.

45

NSS

NOT SOLD SEPARAT

Solenoid Cartridge, Incl in 11

2шт.

46

221579A1

PLUG,M22 x 1.5 ORB

O-Ring Included

1шт.

Выбрано товаров: 48
