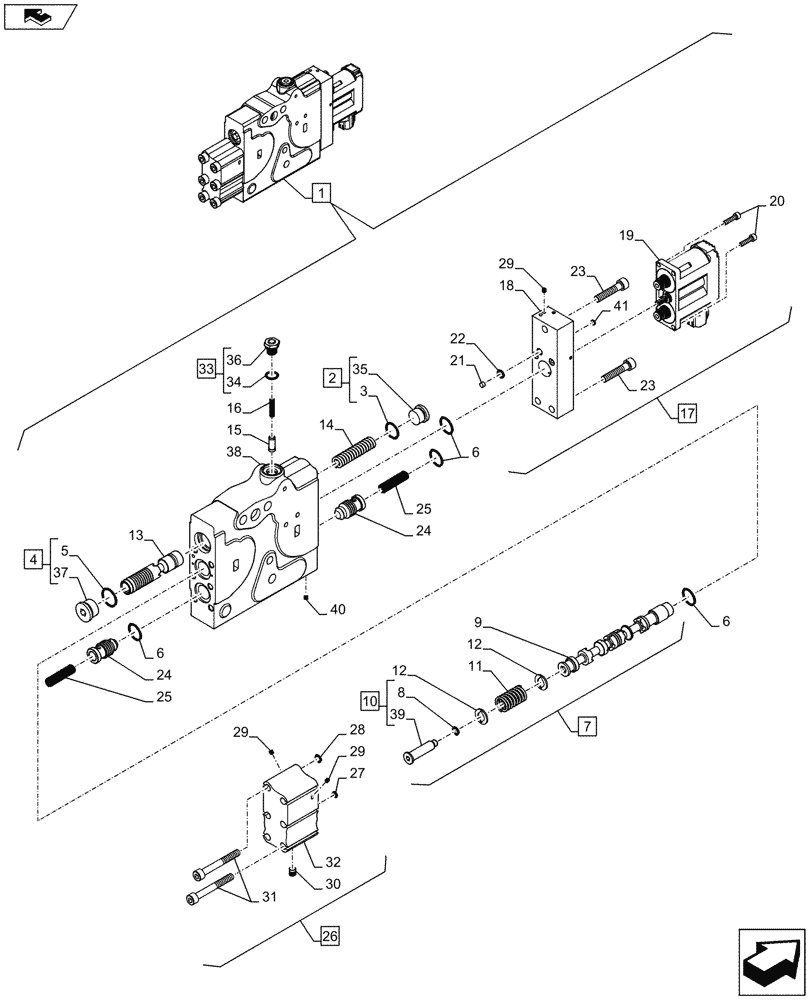

Запчасти Case IH PUMA 230 (35.204.01[04B]) - CONTROL VALVE SECTION, MAIN, COMPONENTS - D7417 - C7418 (35) - HYDRAULIC SYSTEMS

1

47592924

VALVE

ASSY, Auxiliary, Main, Incl 2 - 41

1шт.

1

47592924R

REMAN-HYD VALVE

Auxiliary, Main

1шт.

1

47592924C

CORE-VALVE HYD

Return Number

1шт.

2

47426874

PLUG,7/8" - 14

ASSY, Incl 3, 35

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

ASSY, Incl 5, 37

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

47422966

SEAL,23.52mm ID x 1.78mm Thk

4шт.

7

47499455

SPOOL

ASSY, Main, Incl 9 - 12

1шт.

7

47499468

SPOOL

ASSY, Auxiliary Main Black, Incl 9 - 12

1шт.

7

47499473

SPOOL

ASSY, Auxiliary Main Green, Incl 9 - 12

1шт.

7

47499476

SPOOL

ASSY, Auxiliary Main White, Incl 9 - 12

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in 7

1шт.

10

47426760

PLUG,5/16" - 24

ASSY, Incl 8, 39

1шт.

11

47423002

SPRING,17.6mm OD x 45.86mm L

1шт.

12

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

2шт.

13

47434055

SPOOL,15.9mm ID x 18.75mm OD x 133.6mm L

Pressure

1шт.

14

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

15

87648631

PIN,8mm OD x 19mm L

1шт.

16

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

17

47643919

VALVE

ASSY, Valve, Incl 18 - 22, 29, 41

1шт.

18

NSS

NOT SOLD SEPARAT

Block, Solenoid Adapter Plate, Incl in 17

1шт.

19

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 17

1шт.

20

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

21

87714123

FILTER

100 - 150 Micron

2шт.

22

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

23

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

24

47640123

POPPET

Main Lock Check

2шт.

25

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

26

87329482

VALVE BODY

ASSY, EH Pilot, Incl 27 - 32

1шт.

27

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

28

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

29

282836A1

PLUG,4mm OD x 4mm L

Expansion, 4mm

1шт.

(Qty 8) Incl in 47643919, (Qty 2) Incl in 87329482

1шт.

30

282839A1

PLUG,8mm OD x 8.5mm L

Expansion

1шт.

31

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

32

NSS

NOT SOLD SEPARAT

Body, Incl in 26

1шт.

33

87648607

PLUG,M12 x 1.5 ORB

ASSY, Load Sense, Incl 34, 36

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

36

NSS

NOT SOLD SEPARAT

Plug, Incl in 33

1шт.

37

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

38

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

39

87437101

EXPANSION PLUG,Hex, 6.31mm ID x 15.5mm OD x 48.5mm L

Extension

1шт.

40

84579020

PLUG,1.81" - 2.75"

Extension, 4mm

2шт.

41

47592733

FILTER STRAINER

60 Micron

2шт.
