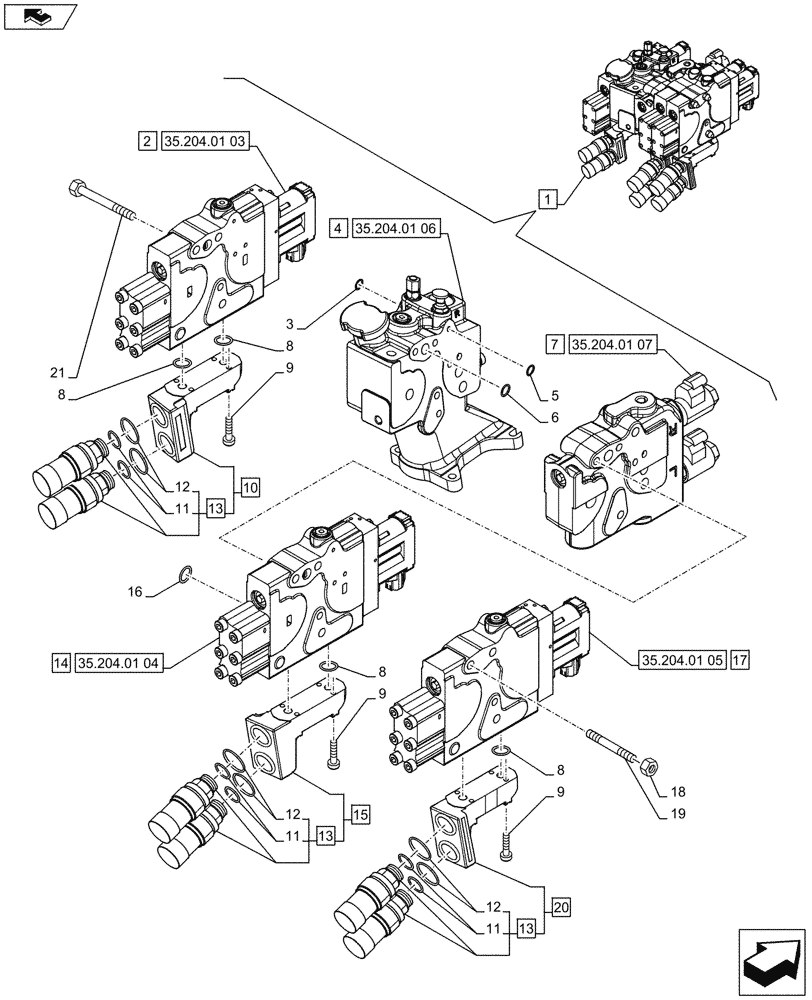

Запчасти Case IH PUMA 230 (35.204.01[02]) - 3 REMOTE CONTROL VALVES, ELECTRONIC, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87582245

CONTROL VALVE

ASSY, Incl 2 - 21, Serial Range: -C7417

1шт.

1

47592929

CONTROL VALVE

ASSY, Incl 2 - 21, Serial Range: D7417-C7418

1шт.

1

47594440

CONTROL VALVE

ASSY, Incl 2 - 21, Start Serial: D7418

1шт.

2

87330318

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: -C7414

1шт.

2

87330318R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

2

87330318C

CORE-VALVE HYD

Return Number

1шт.

2

47434172

HYD VALVE SECTION

ASSY, Auxiliary, Left, Serial Range: D7414-C7417

1шт.

2

47434172R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

2

47434172C

CORE-VALVE HYD

Return Number

1шт.

2

47592925

HYDRAULIC VALVE

ASSY, Auxiliary, Left, Serial Range: D7417-C7418

1шт.

2

47592925R

REMAN-HYD VALVE

Auxiliary, Left

1шт.

2

47592925C

CORE-VALVE HYD

Return Number

1шт.

2

47594400

HYDRAULIC VALVE

ASSY, Auxiliary, Left Low Leak, Start Serial: D7418

1шт.

3

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

4

87555868

MANIFOLD VALVE

ASSY, Inlet/Outlet

1шт.

5

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

6шт.

6

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

13шт.

7

87331245

VALVE SECTION

ASSY, Hitch Valve, Serial Range: -C7414

1шт.

7

87331245R

REMAN-HYD VALVE

Hitch Valve

1шт.

7

87331245C

CORE-VALVE HYD

Return Number

1шт.

7

47434177

HYD VALVE SECTION

ASSY, Hitch Valve, Start Serial: D7414

1шт.

7

47434177R

REMAN-HYD VALVE

Hitch Valve

1шт.

7

47434177C

CORE-VALVE HYD

Return Number

1шт.

8

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

6шт.

9

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

12шт.

10

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, ASSY, Incl 13

1шт.

11

87382012

SEAL KIT

6шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

13

87381944

COUPLING, QUICK, FEM

ASSY, Incl 11, 12

6шт.

14

87325955

HYD VALVE SECTION

ASSY, Auxiliary, Main, Serial Range: -C7414

1шт.

14

87325955R

REMAN-HYD VALVE

Auxiliary, Main

1шт.

14

87325955C

CORE-VALVE HYD

Return Number

1шт.

14

47434171

HYD VALVE SECTION

ASSY, Auxiliary, Main, Serial Range: D7414-C7417

1шт.

14

47434171R

REMAN-HYD VALVE

Auxiliary, Main

1шт.

14

47434171C

CORE-VALVE HYD

Return Number

1шт.

14

47592924

VALVE

ASSY, Auxiliary, Main, Serial Range: D7417-C7418

1шт.

14

47592924R

REMAN-HYD VALVE

Auxiliary, Main

1шт.

14

47592924C

CORE-VALVE HYD

Return Number

1шт.

14

47594399

HYDRAULIC VALVE

ASSY, Auxiliary, Main Low Leak, Start Serial: D7418

1шт.

15

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, ASSY, Incl 13

1шт.

16

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

17

87330385

HYD VALVE SECTION

ASSY, Auxiliary, Right, Serial Range: -C7414

1шт.

17

87330385R

REMAN-HYD VALVE

Auxiliary, Right

1шт.

17

87330385C

CORE-VALVE HYD

Return Number

1шт.

17

47434173

HYD VALVE SECTION

ASSY, Auxiliary, Right, Serial Range: D7414-C7417

1шт.

17

47434173R

REMAN-HYD VALVE

Auxiliary, Right

1шт.

17

47434173C

CORE-VALVE HYD

Return Number

1шт.

17

47592926

HYDRAULIC VALVE

ASSY, Auxiliary, Right, Serial Range: D7417-C7418

1шт.

17

47592926R

REMAN-HYD VALVE

Auxiliary, Right

1шт.

17

47592926C

CORE-VALVE HYD

Return Number

1шт.

17

47594401

HYDRAULIC VALVE

ASSY, Auxiliary, Right Low Leak, Start Serial: D7418

1шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

19

84268953

STUD,M12 x 1.75 x 205mm L

M12 x 1.75 x 205mm

3шт.

20

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, ASSY, Incl 13

1шт.

21

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

3шт.
