Запчасти Case IH PUMA 230 (35.162.01[06]) - FRONT HPL - HYDRAULIC CYLINDER - BREAKDOWN (VAR.743483-743484-743485-743486 / 743666-743667-743765-743837-743838) (35) - HYDRAULIC SYSTEMS

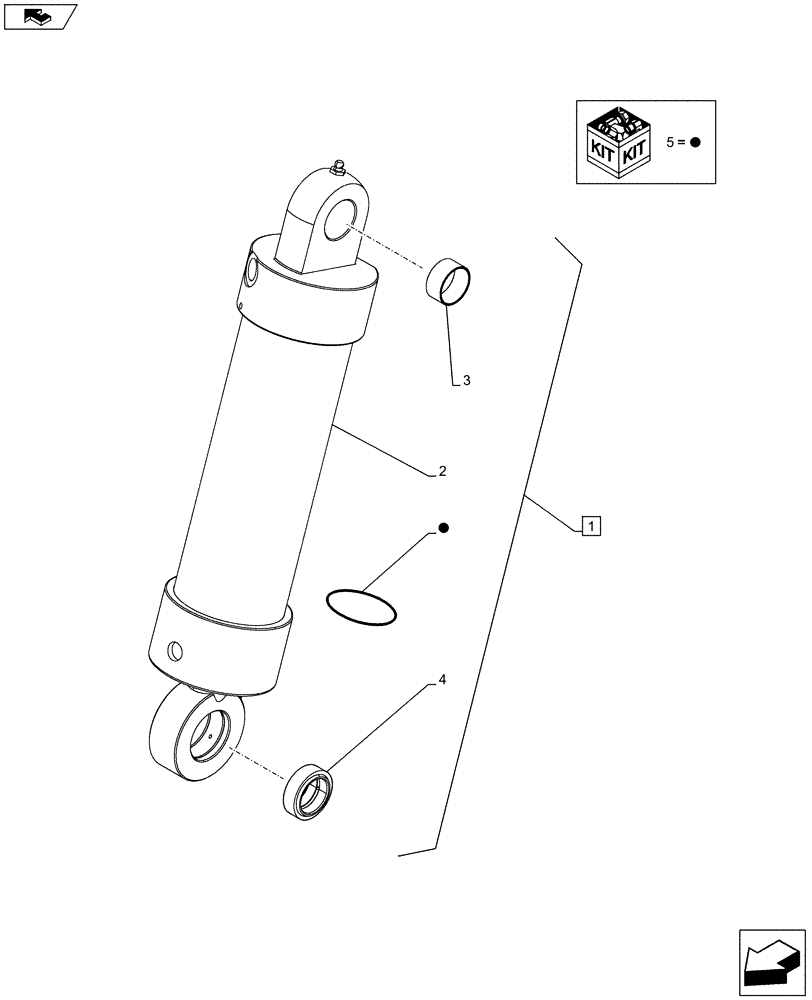

Схема запчастей Case IH PUMA 230 - (35.162.01[06]) - FRONT HPL - HYDRAULIC CYLINDER - BREAKDOWN (VAR.743483-743484-743485-743486 / 743666-743667-743765-743837-743838) (35) - HYDRAULIC SYSTEMS
home
5
3
5
5
2
1
4

Артикул

Название

Примечание

Количество

1

84486252

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

LH, ASSY, Contains Ref. 2 - 5

1шт.

1

84470637

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

RH, ASSY, Contains Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Body

1шт.

3

84472378

BUSHING

1шт.

4

84472283

ARTICULATION,30mm ID

1шт.

5

84472381

SEAL KIT

1шт.

Выбрано товаров: 6
