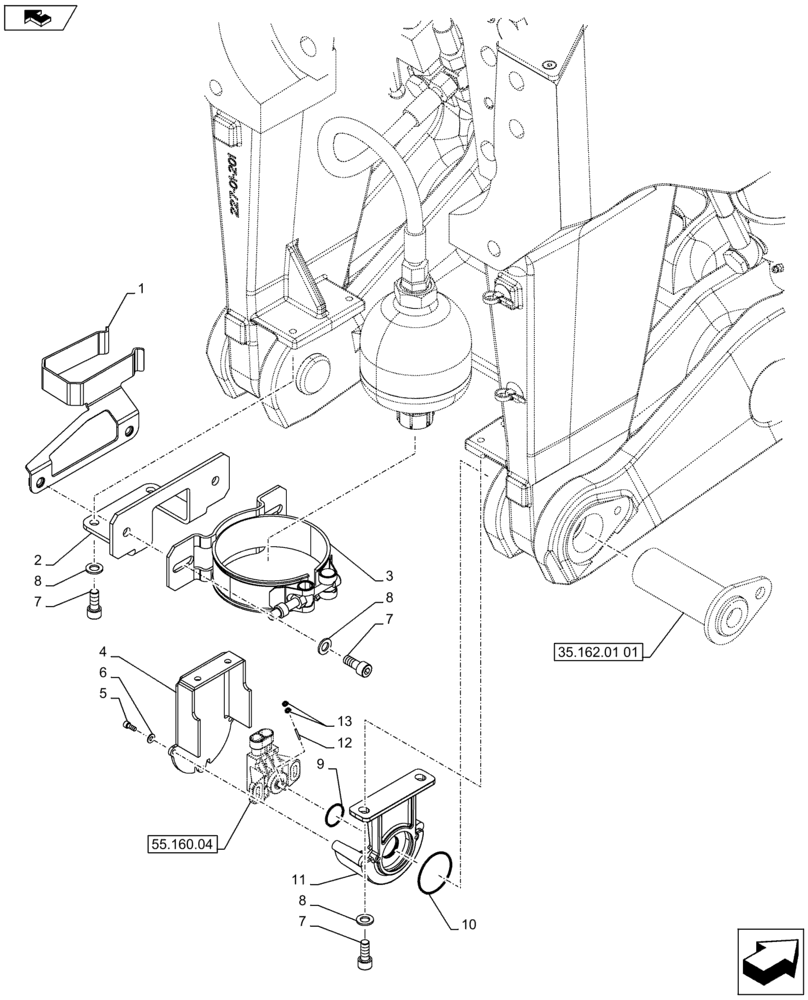

Запчасти Case IH PUMA 230 (35.162.01[04]) - FRONT HPL - BRACKET (VAR.743483-743484-743485-743486 / 743666-743667-743765-743837-743838) (35) - HYDRAULIC SYSTEMS

1

84398968

HOLDER

ASSY, Contains Ref. 2, 3

1шт.

2

84479305

SENSOR

RH, ASSY, Contains Ref. 4 - 6

1шт.

3

84481296

FASTENER

LH, ASSY, Contains Ref. 4 - 6

1шт.

4

84408286

COVER

1шт.

5

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

3шт.

6

14497701

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

3шт.

7

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

6шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

9

84482290

O-RING

1шт.

10

84482233

O-RING

1шт.

11

84479284

SUPPORT

1шт.

12

84485824

ROLL PIN

1шт.

13

84482300

O-RING,1.5 Thk x 2mm ID, Cl 5

2шт.
