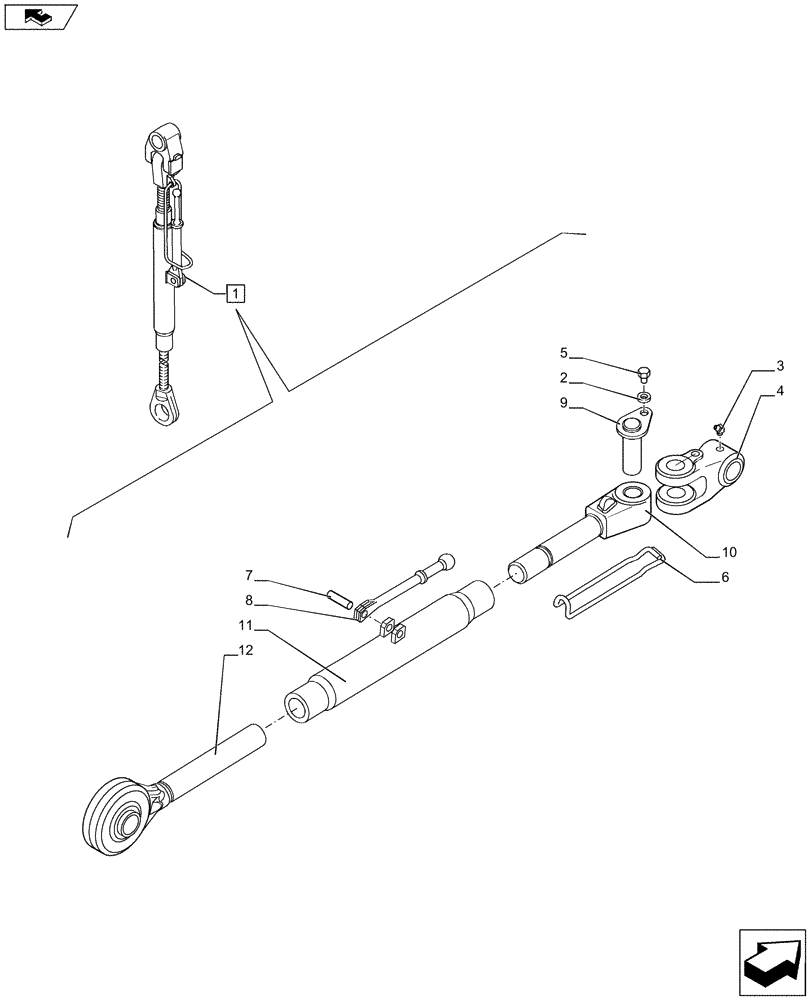

Запчасти Case IH PUMA 230 (35.120.0103[02]) - 2/3 TELESCOPIC LINK ENDS - IMPLEMENT CARRIER WITH TELESCOPIC LINK ENDS (VAR.720881) (35) - HYDRAULIC SYSTEMS

1

87707450

TOP LINK

Contains Ref. 2-12

1шт.

2

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.50 x 21 x 2

1шт.

3

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

TS45, 10 x 1

1шт.

4

87707443

SWIVEL HITCH HEAD TR

1шт.

5

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

M10 x 16

1шт.

6

5140619

SPRING,215mm L

1шт.

7

14613471

ROLL PIN,12mm OD x 40mm L

1шт.

8

5172394

LEVER

1шт.

9

87707444

PIN

1шт.

10

87707449

LIFT LINK END ASSY,1-1/2" - 6

1шт.

11

87707451

TURNBUCKLE

1шт.

12

5197812

TIE-ROD

1шт.
