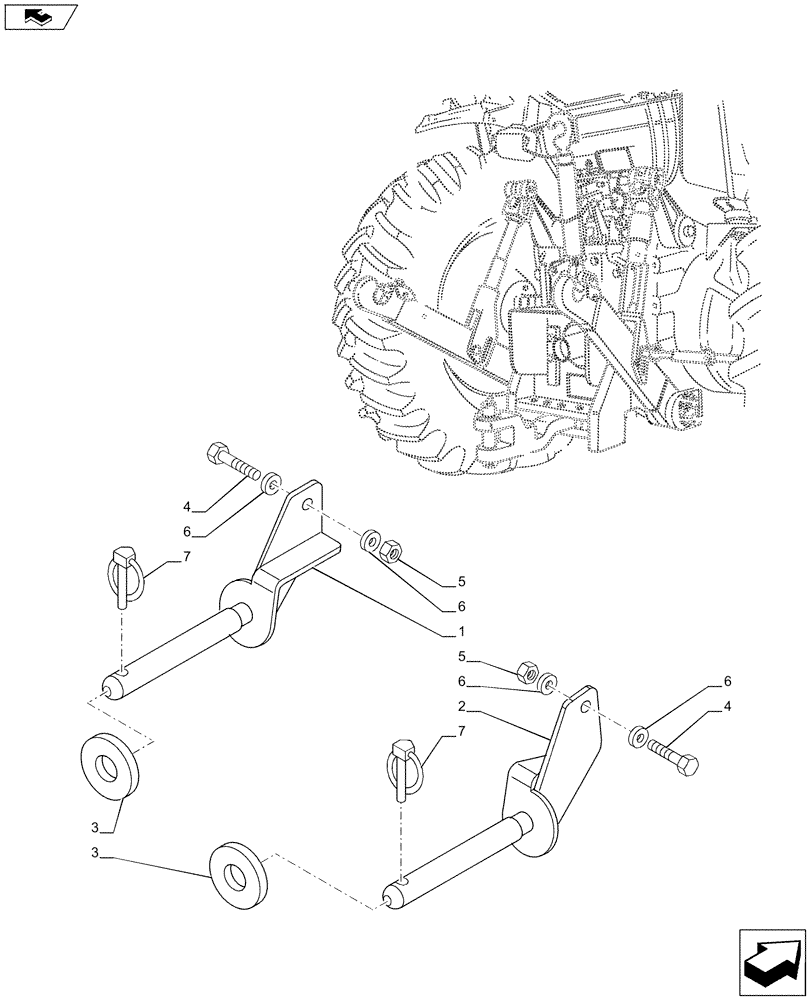

Запчасти Case IH PUMA 230 (35.120.0101) - STORAGE AREA FOR LINKAGE BALLS - STORAGE AREA FOR LINK (VAR.743050 -743829) (35) - HYDRAULIC SYSTEMS

1

87648514

HOLDER

LH

1шт.

2

87732722

HOLDER

RH

1шт.

3

87730705

RUBBER WASHER,20mm ID x 50mm OD x 5mm Thk, Black

RUBBER BUSHING

2шт.

4

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

M10

2шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

7

82013836

ROLL PIN,6mm OD

LOCK PIN

2шт.
