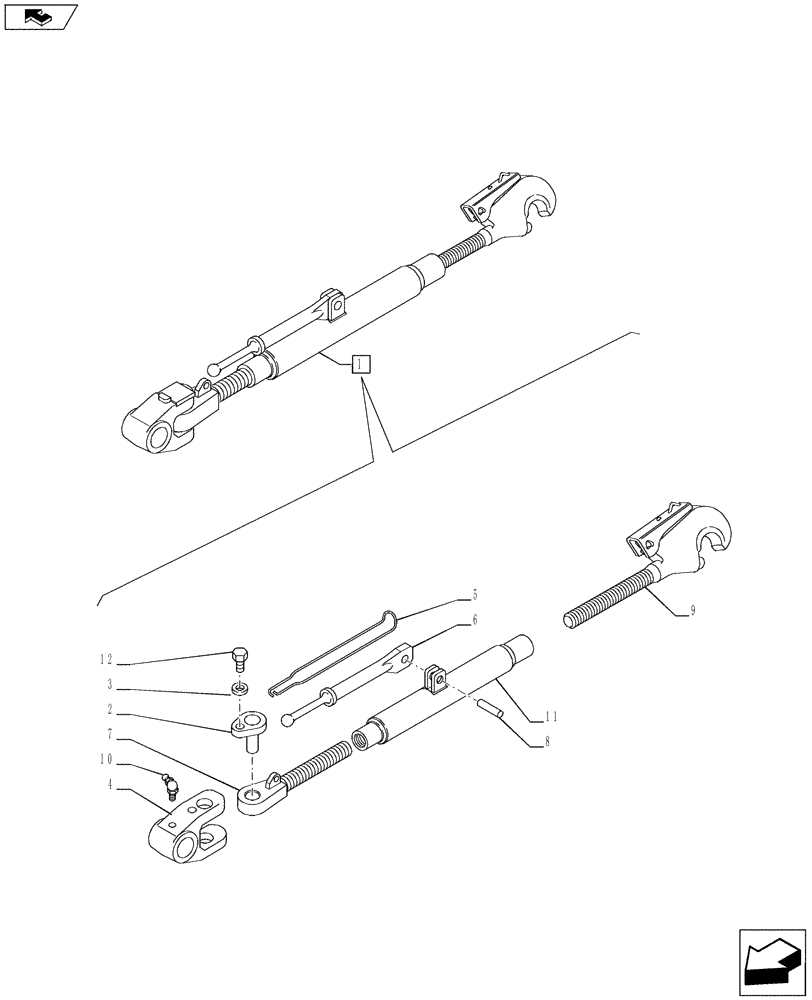

Запчасти Case IH PUMA 230 (35.120.01[03]) - TOP LINK ASSEMBLY - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

87707447

TOP LINK

Contains Ref. 2-12

1шт.

2

87707444

PIN

1шт.

3

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

4

87707443

SWIVEL HITCH HEAD TR

1шт.

5

5140619

SPRING,215mm L

1шт.

6

5172394

LEVER

1шт.

7

87707449

LIFT LINK END ASSY,1-1/2" - 6

1шт.

8

14613471

ROLL PIN,12mm OD x 40mm L

1шт.

9

82033135

HOOK

1шт.

10

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

11

87707448

TURNBUCKLE,1-1/2" - 6

1шт.

12

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

1шт.
