Запчасти Case IH PUMA 230 (35.120.01[02]) - IMPLEMENT CARRIER (35) - HYDRAULIC SYSTEMS

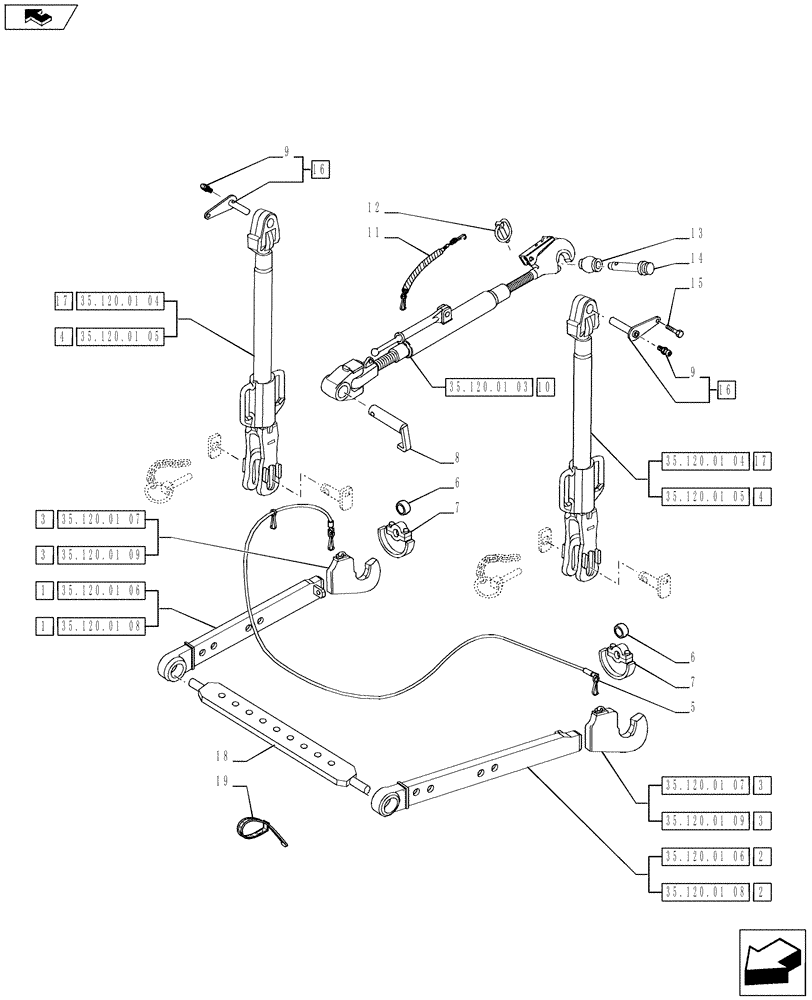

Схема запчастей Case IH PUMA 230 - (35.120.01[02]) - IMPLEMENT CARRIER (35) - HYDRAULIC SYSTEMS
17
3
6
6
9
8
35.120.01 07
35.120.01 03
35.120.01 08
35.120.01 06
35.120.01 09
35.120.01 07
35.120.01 05
35.120.01 04
home
35.120.01 05
35.120.01 04
35.120.01 08
35.120.01 06
35.120.01 09
19
12
2
4
2
3
15
18
16
11
1
1
3
10
13
16
7
1
7
17
14
3
4
5
9

Артикул

Название

Примечание

Количество

1

47137104

LOWER LINK

RH

1шт.

1

87311374

LOWER LINK

RH

1шт.

2

47137107

LOWER LINK

LH

1шт.

2

87311376

LOWER LINK

LH

1шт.

3

5189332

HOOK

2шт.

3

87315107

HOOK

2шт.

4

84385467

LIFTING ROD

2шт.

Also VAR.728237 Hyd. Top Link for All Linkage Options / Not Compatible 878484

1шт.

5

5116063

ROPE,4500mm L

1шт.

6

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

CAT.3

2шт.

6

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

CAT.2

2шт.

7

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

CAT.2

2шт.

7

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

CAT.3

2шт.

8

87355020

PIN

1шт.

Also VAR.720881 Links Cat 2/3 Telescopic Ends

1шт.

9

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

10

87707447

TOP LINK

1шт.

11

5174402

LINK CHAIN,1500mm L

1шт.

12

5166585

LOCK PIN,11mm OD

1шт.

Also VAR.720881 Links Cat 2/3 Telescopic Ends

1шт.

13

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

CAT.2

1шт.

13

5116060

BUSHING,32mm ID x 60mm OD x 51mm L

CAT.3

1шт.

14

822483

PIN,25.5mm OD x 137mm L

CAT.2

1шт.

Also VAR.720881 Links Cat 2/3 Telescopic Ends

1шт.

14

44015196

PIN,31.75mm OD x 146mm L

CAT.3

1шт.

Also VAR.720881 Links Cat 2/3 Telescopic Ends

1шт.

15

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

M10 x 1.25 x 22

2шт.

16

87317296

PIN,28mm OD x 122.5mm L

Contains Ref. 9

2шт.

17

87311417

LIFT LINK

RH

2шт.

Also VAR.720881 Links Cat 2/3 Telescopic Ends

1шт.

18

5199253

SUPPORT

1шт.

Also VAR.720899 Linkage Drawbar

1шт.

19

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

Also VAR.720881 Links Cat 2/3 Telescopic Ends

1шт.

Выбрано товаров: 34
