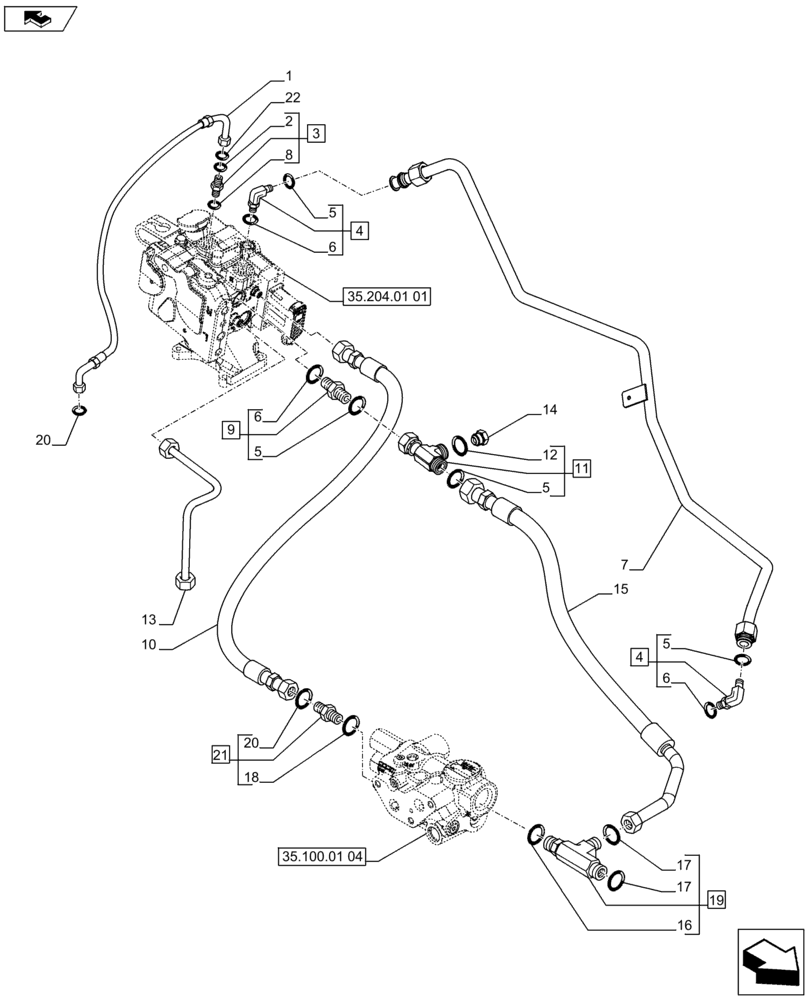

Запчасти Case IH PUMA 230 (35.100.04[01]) - LIFTER LINES - REMOTE CONTROL VALVES MAIN SUPPLY AND LOAD SENSE LINE (VAR.720819) (35) - HYDRAULIC SYSTEMS

1

84162654

HOSE,6.3mm ID x 552mm L

AUX LS, ASSY, Contains Ref. 20,22

1шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

84162690

ORIFICE,Hex, M16 x 1.5 x 33.5mm L

ASSY, Contains Ref. 2,8

1шт.

4

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

ASSY, Contains Ref. 5,6

2шт.

5

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

4шт.

6

14438185

O-RING,24mm ID x 3mm

3шт.

7

87675046

HYD TUBE,20 mm OD

Remotes Drain

1шт.

8

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

9

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

ASSY, Contains Ref. 5,6

1шт.

10

87608165

HYDRAULIC HOSE,6.4mm ID x 720mm L, SAE 100R2

LS Remotes

1шт.

11

5197273

HYD CONNECTOR,1' 3/16-12 x 83.6mm

ASSY, Contains Ref. 5,12

1шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

13

87370311

HYD TUBE

Low Pressure

1шт.

14

9847689

CAP,1-3/16" - 12 ORFS

1шт.

15

87608163

HYDRAULIC HOSE

, Serial Range: Supply-Remotes

1шт.

16

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

19

86579706

TEE,1-3/16"-12 ORFS x M27 x 2.0 ORB

ASSY, Contains Ref. 16,17

1шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

21

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Contains Ref. 18,20

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
