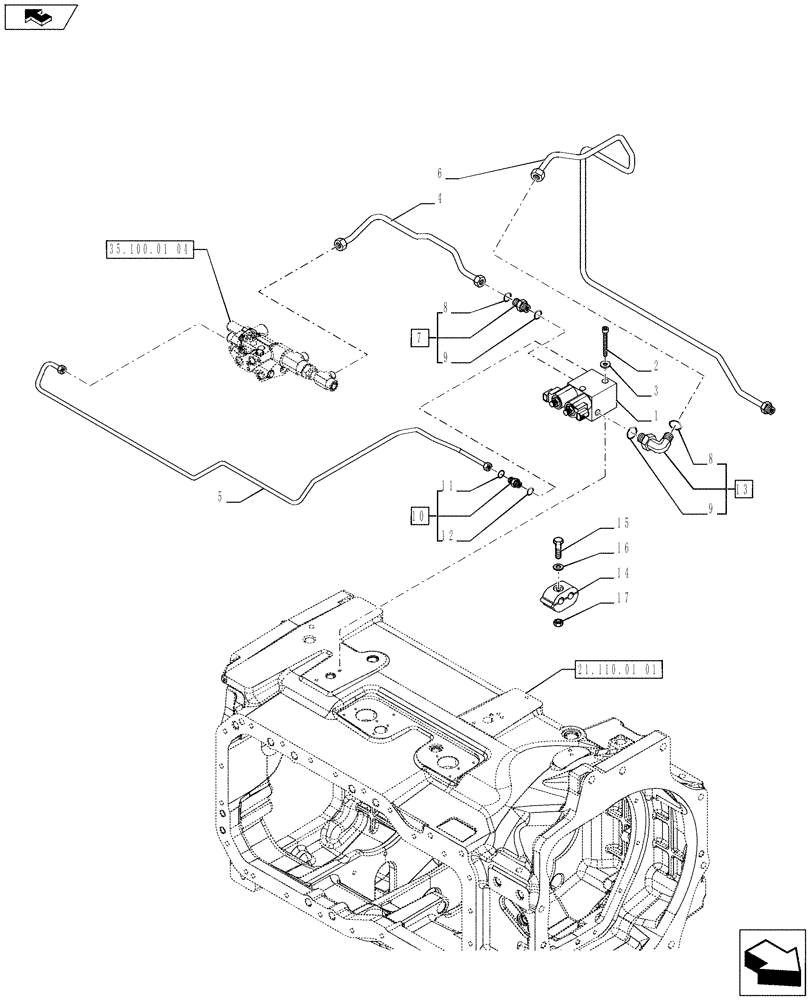

Запчасти Case IH PUMA 230 (35.100.03[01 ]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - VALVE AND PIPES - C7090 (VAR.720463-728212) (35) - HYDRAULIC SYSTEMS

1

87707744

MANIFOLD VALVE

1шт.

2

14309021

HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8

2шт.

3

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

4

87724324

HYD TUBE

Supplyto Load Levelling

1шт.

5

84326327

HYD TUBE

1шт.

6

87676091

PIPE

to Axle Suspension

1шт.

7

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

M16 x 1.5, Contains Ref. 8,9

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

.07 X .489 14 6

2шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2.2W x 13.3ID Green

2шт.

10

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

M12 x 1.5, Contains Ref. 11,12

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

.07 x 301 11 6

1шт.

12

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2.2W x 9.3ID Green

1шт.

13

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Contains Ref. 8,9

1шт.

14

87738904

CLAMP BRACKET

1шт.

15

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

1шт.

16

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

1шт.

17

12574115

NUT

1шт.
