Запчасти Case IH PUMA 230 (35.100.02[01A]) - HYDRAULIC PUMP - PRIORITY VALVE PIPES AND UNIONS - D7090 (VAR.720463-743963-743964) (35) - HYDRAULIC SYSTEMS

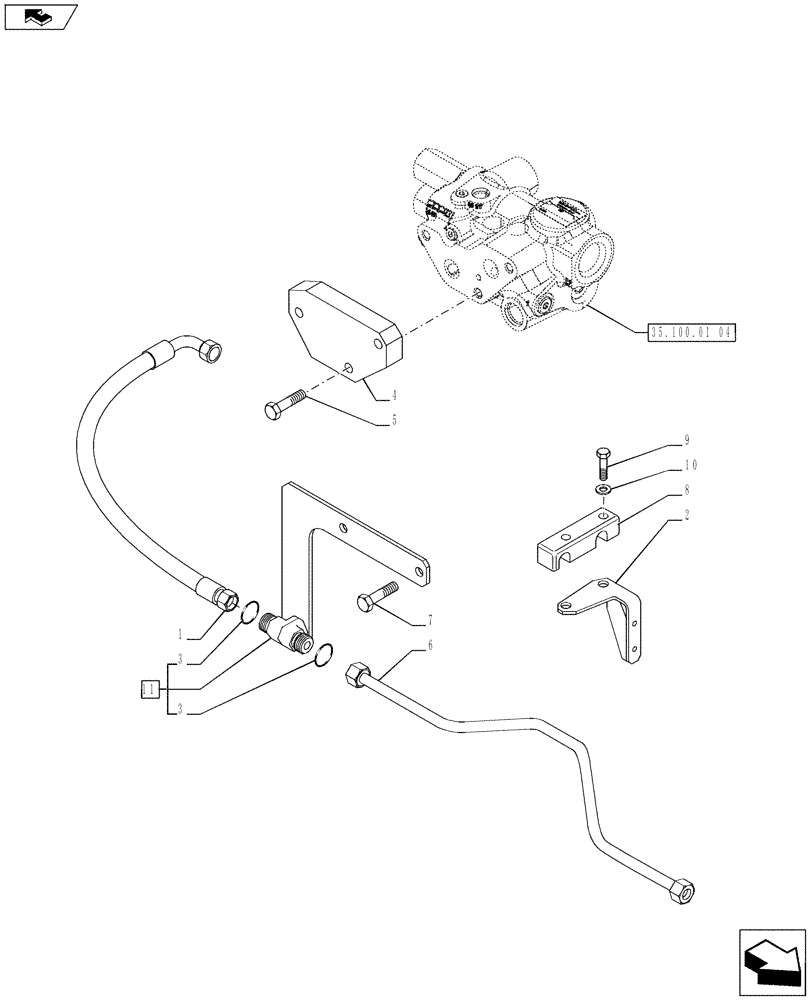

Схема запчастей Case IH PUMA 230 - (35.100.02[01A]) - HYDRAULIC PUMP - PRIORITY VALVE PIPES AND UNIONS - D7090 (VAR.720463-743963-743964) (35) - HYDRAULIC SYSTEMS
home
2
3
9
5
11
8
3
35.100.01 04
1
6
10
4
7

Артикул

Название

Примечание

Количество

1

82038870

HOSE,9.53mm ID x 620mm L, SAE 100R16

1шт.

1

87316165

HOSE

1шт.

VAR.720463 4WD Axle with Active Suspension and VAR.743963-743964 4WD Axle with Active Suspension and Brakes

1шт.

2

82037221

BRACKET

1шт.

3

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.

Except for VAR.728212-720463

1шт.

4

87316882

COVER

1шт.

5

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

3шт.

6

87494271

BRAKE LINE

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

Except for VAR.728212-720463

1шт.

8

87309856

CLAMP BRACKET

1шт.

9

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

11

82037429

BRACKET

Contains Ref. 3

1шт.

Except for VAR.728212-720463

1шт.

Выбрано товаров: 16
