(35.100.01[05]) - HYDRAULIC PUMP - IDLER GEARS

Запчасти Case IH PUMA 230 (35.100.01[05]) - HYDRAULIC PUMP - IDLER GEARS (35) - HYDRAULIC SYSTEMS

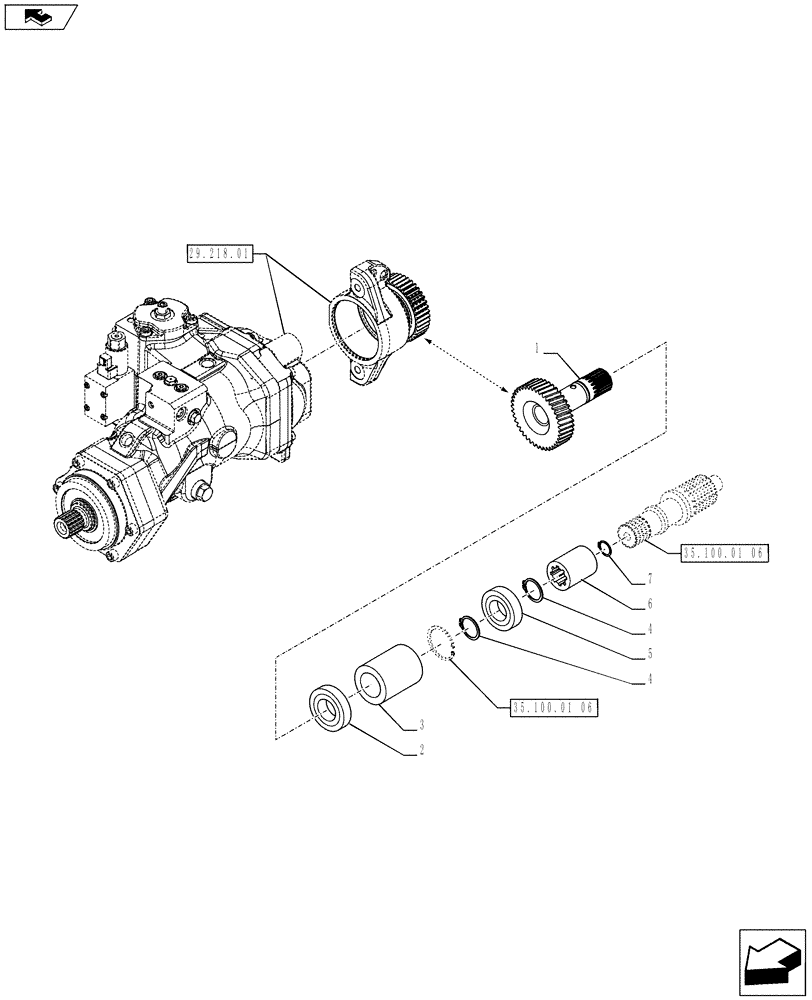

Схема запчастей Case IH PUMA 230 - (35.100.01[05]) - HYDRAULIC PUMP - IDLER GEARS (35) - HYDRAULIC SYSTEMS
5
3
4
35.100.01 06
home
35.100.01 06
29.218.01
1
2
6
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84243987

PINION,43T

1шт.

2

87562257

ROLLER BEARING,35mm ID x 72mm OD x 23mm W

35 x 72

1шт.

3

87534189

SPACER,65mm ID x 72mm OD x 52.5mm L

1шт.

4

5109282

CIRCLIP,M35, Ext x 2.50 Thk

2шт.

5

28996540

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

6

87538073

COUPLING RING,32.7mm ID x 48mm OD x 52mm L, 18T

1шт.

7

11058976

SNAP RING,M31, Int

1шт.

Выбрано товаров: 7
