Запчасти Case IH PUMA 230 (35.100.01[03]) - HYDRAULIC PUMP - CHARGE PUMP (VAR.729004 / 743616) (35) - HYDRAULIC SYSTEMS

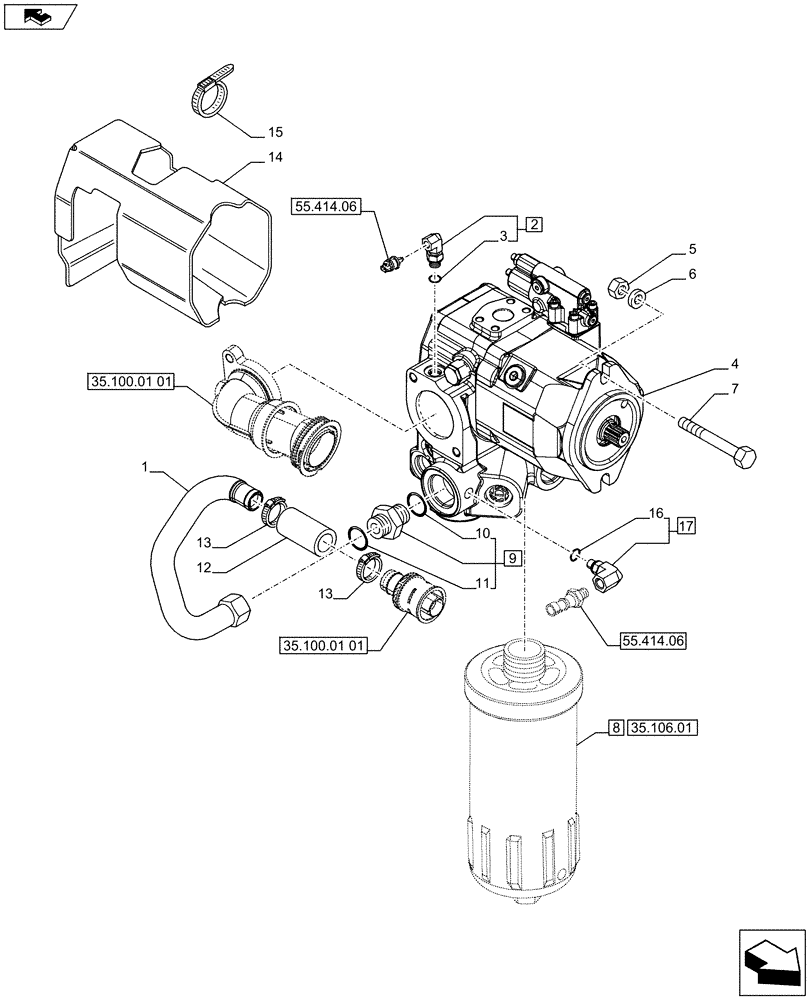

Схема запчастей Case IH PUMA 230 - (35.100.01[03]) - HYDRAULIC PUMP - CHARGE PUMP (VAR.729004 / 743616) (35) - HYDRAULIC SYSTEMS
10
35.100.01 01
3
7
1
13
6
13
8
12
home
15
14
5
55.414.06
9
55.414.06
4
35.100.01 01
2
11
16
35.106.01
17

Артикул

Название

Примечание

Количество

1

84355354

PIPE

1шт.

2

87667432

HYD CONNECTOR,M10 x 1 x M14 x 1.5

M14 x 1.5, Contains Ref. 3

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

84353098

HYDRAULIC PUMP,56 CC

Charge pump 90CC and 56CC of CCLS, 150 l / min

1шт.

4

84353098R

REMAN-HYD PUMP

Charge pump 90CC and 56CC of CCLS, 150 l / min

1шт.

4

84353098C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

84353100

HYDRAULIC PUMP,63 CC

Charge pump 90CC and 63CC of CCLS, 170 l / min

1шт.

"HI - FLOW" PFC Pump with EDC for EHR Remotes, VAR.729004

1шт.

4

84353100R

REMAN-HYD PUMP

Charge pump 90CC and 63CC of CCLS, 170 l / min

1шт.

"HI - FLOW" PFC Pump with EDC for EHR Remotes, VAR.729004

1шт.

4

84353100C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

M14 x 1.5

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

15877021

BOLT,Hex, M14 x 1.5 x 110mm, Cl 8.8

2шт.

8

84341286

HYDRAULIC OIL FILTER,289.5mm L

HYDRAULIC FILTER

1шт.

AFTER THE FIRST 50 HOURS REPLACE THE FILTER WITH: PN 84417137 - Housing / PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring; FOR OTHER TIME REPLACE THE FILTER WITH: PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring

1шт.

9

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

Contains Ref. 10,11

1шт.

10

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

12

87486055

SLEEVE

1шт.

13

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

25 x 40 x 9

2шт.

14

84212218

NOISE PROTECTION

1шт.

15

14569387

HOSE CLIP

5шт.

16

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

17

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

Contains Ref. 16

1шт.

Выбрано товаров: 25
