Запчасти Case IH PUMA 230 (35.100.01[02]) - HYDRAULIC PUMP - VANE PUMP (STD+VAR.729004 / 743616) (35) - HYDRAULIC SYSTEMS

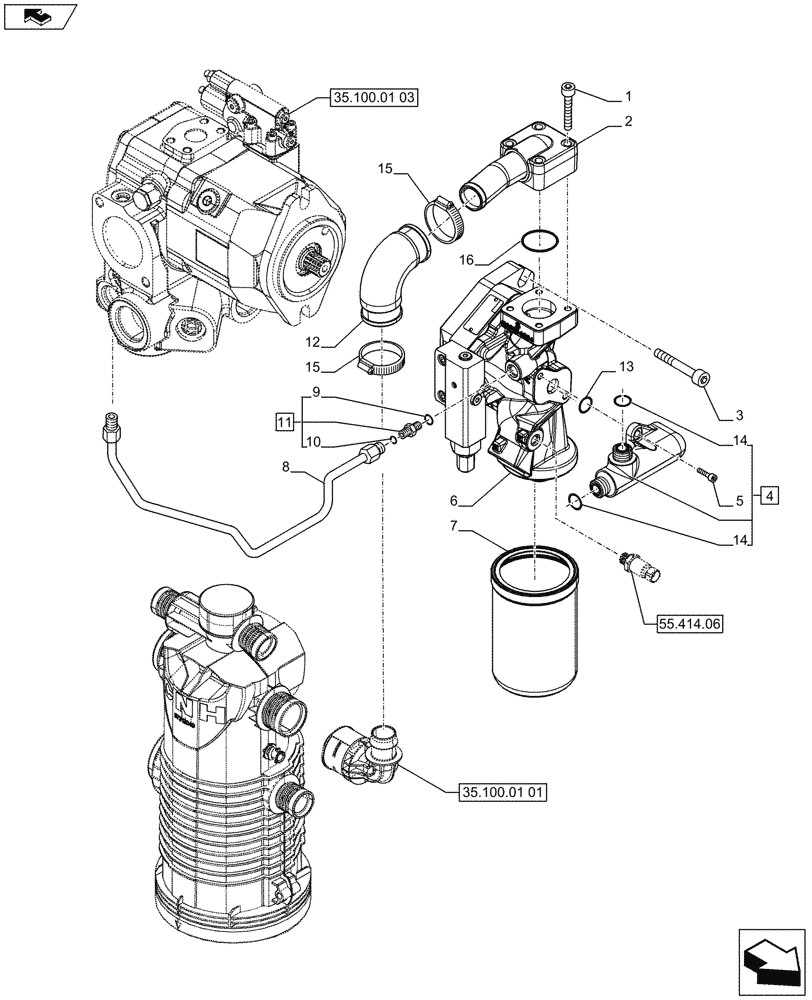

Схема запчастей Case IH PUMA 230 - (35.100.01[02]) - HYDRAULIC PUMP - VANE PUMP (STD+VAR.729004 / 743616) (35) - HYDRAULIC SYSTEMS
35.100.01 03
15
8
16
3
6
home
5
12
13
15
7
9
4
11
2
14
10
14
1
35.100.01 01
55.414.06

Артикул

Название

Примечание

Количество

1

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

2

87608113

TUBE

1шт.

3

14311824

SCREW

M14 x 1.5 x 45

2шт.

4

87608369

FLANGE

Contains Ref. 5,14

1шт.

5

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

87738887

PUMP,45 CC

1шт.

87738887R

REMAN-HYD PUMP

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230, ALL CVT (12/10-)

1шт.

87738887C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

87588814

HYDRAULIC OIL FILTER,151mm L

1шт.

8

84342583

HYD TUBE

1шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

Contains Ref. 9,10

1шт.

12

87608355

ELBOW,31mm OD x 45mm ID x 60/65mm

1шт.

13

14453880

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

15

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

16

14454980

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

1шт.

Выбрано товаров: 18
