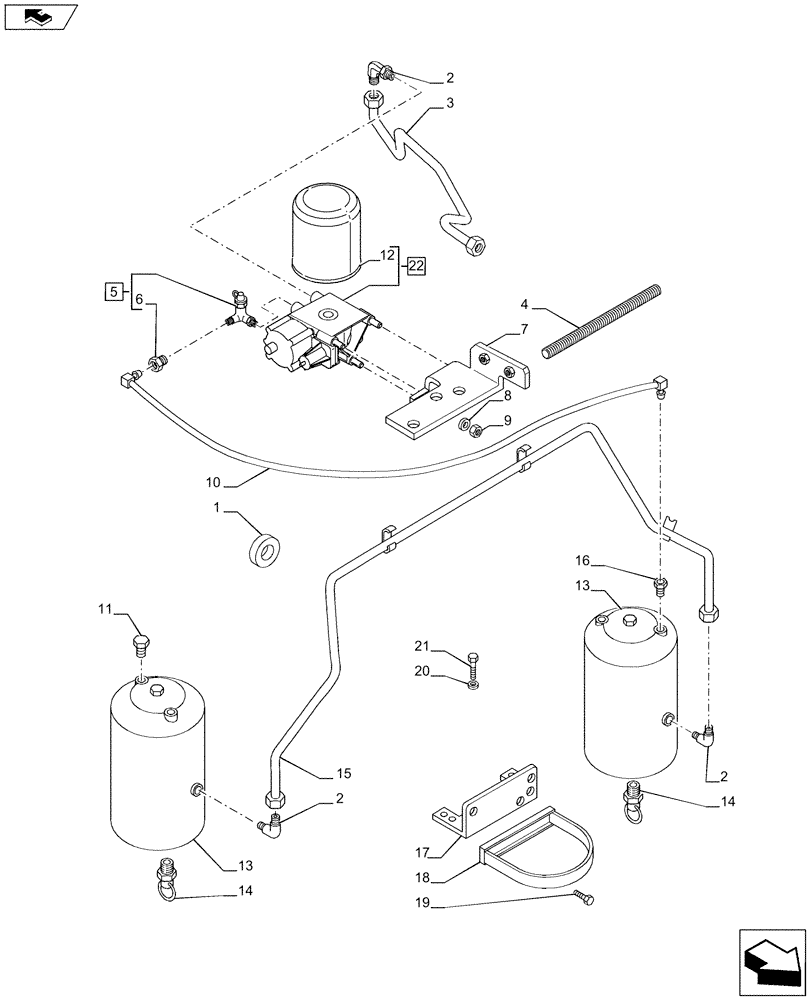

Запчасти Case IH PUMA 230 (33.224.03) - PNEUMATIC TRAILER BRAKE - REGENERATION AIR DRYER, TANKS AND PIPES (33) - BRAKES & CONTROLS

1

87305285

SPACER

Less Stabilizer

1шт.

2

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

3шт.

3

87539765

PIPE

1шт.

4

87597130

FLEXIBLE SHEATH

1шт.

5

87345151

HYD CONNECTOR,M22 x 1.5

Contains Ref. 6

1шт.

6

82034157

ADAPTER

1шт.

7

87667107

BRACKET

1шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

9

11702911

NUT,M12, Cl 8, ZND

3шт.

10

84374873

TUBE

1шт.

11

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

12

87638772

CARTRIDGE,165mm L

1шт.

13

82020479

AIR RESERVOIR

2шт.

14

82004266

DRAIN

2шт.

15

84147903

PIPE

1шт.

16

82036156

FITTING,M22 x 1.5 x NG12

2шт.

17

82011501

BRACKET

2шт.

18

82038451

COLLAR CLAMP,206mm ID

2шт.

19

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

20

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

21

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

22

87365850

RECEIVER-DRYER,Air Conditioner

Contains Ref. 12

1шт.
