Запчасти Case IH PUMA 230 (33.224.0101[14]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - COUPLERS (VAR. 743965) (33) - BRAKES & CONTROLS

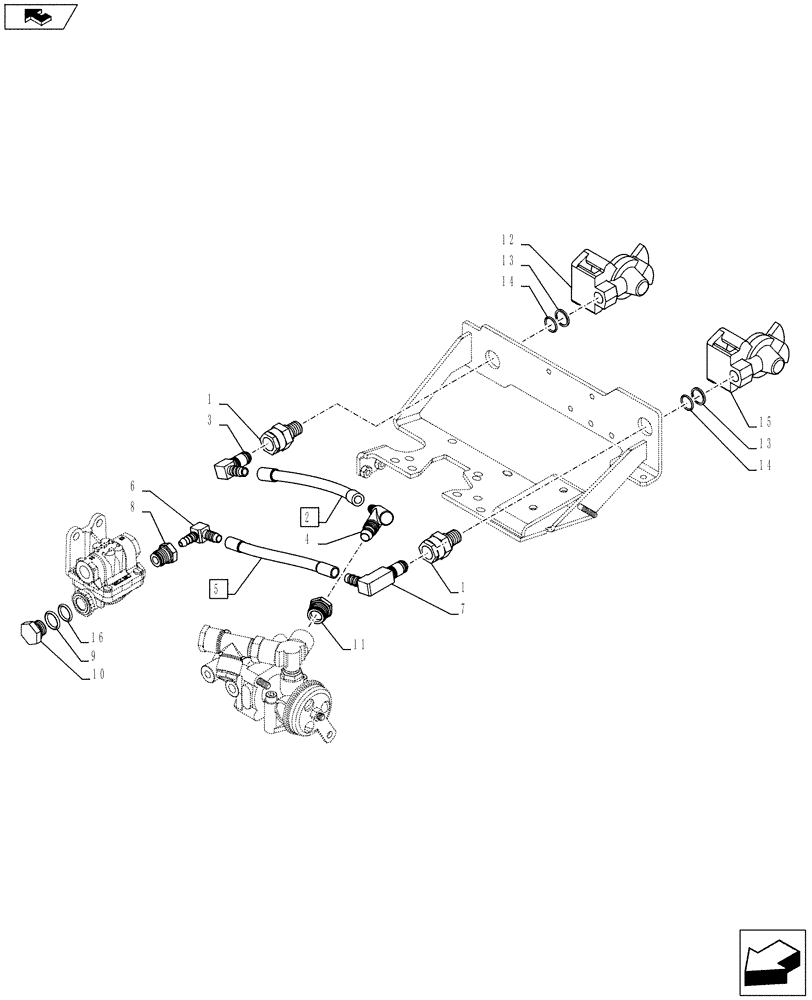

Схема запчастей Case IH PUMA 230 - (33.224.0101[14]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - COUPLERS (VAR. 743965) (33) - BRAKES & CONTROLS
2
14
13
5
16
6
7
11
8
12
1
13
10
3
4
15
1
9
14
home

Артикул

Название

Примечание

Количество

1

87678128

ADAPTER

2шт.

2

84181248

FLEXIBLE HOSE

ASSY, Contains Ref. 3, 4

1шт.

3

82038479

90 ELBOW,NG12 x 12mm D

1шт.

4

87642190

HYD CONNECTOR

1шт.

5

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

ASSY, Contains Ref. 6, 7

1шт.

6

87588080

90 ELBOW,NG8 x 12mm D

1шт.

7

84157694

90 ELBOW

1шт.

8

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

9

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

10

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

11

82034157

ADAPTER

1шт.

12

82001019

COUPLING

1шт.

13

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

14

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

15

82001020

COUPLING

1шт.

16

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

Выбрано товаров: 16
