(33.224.0101[08]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - LEFT PRESSURE LIMITING VALVE (VAR. 743922)

Запчасти Case IH PUMA 230 (33.224.0101[08]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - LEFT PRESSURE LIMITING VALVE (VAR. 743922) (33) - BRAKES & CONTROLS

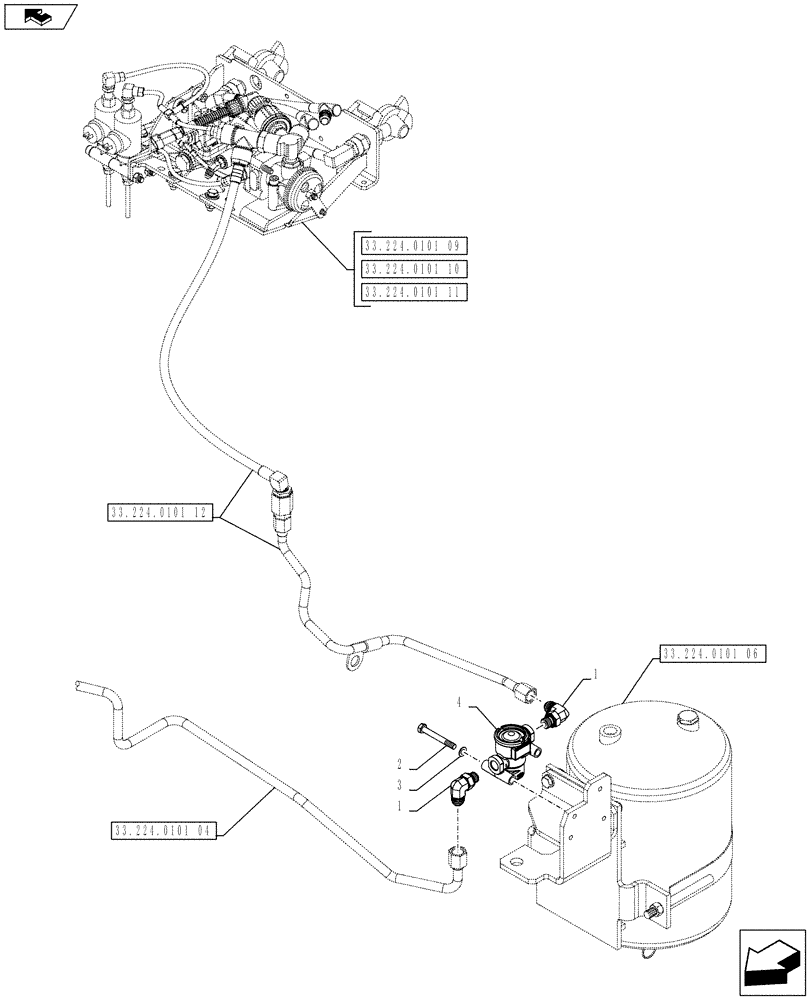

Схема запчастей Case IH PUMA 230 - (33.224.0101[08]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - LEFT PRESSURE LIMITING VALVE (VAR. 743922) (33) - BRAKES & CONTROLS
home
33.224.0101 10
33.224.0101 09
2
1
33.224.0101 11
33.224.0101 12
3
4
1
33.224.0101.06
33.224.0101 04
33.224.0101 06
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84553346

HYD CONNECTOR,M16 x 1.5

2шт.

2

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

3

12601379

WAVE WASHER,Wave, M8.4

2шт.

4

84394097

PRESSURE LIMITER

1шт.

Выбрано товаров: 4
