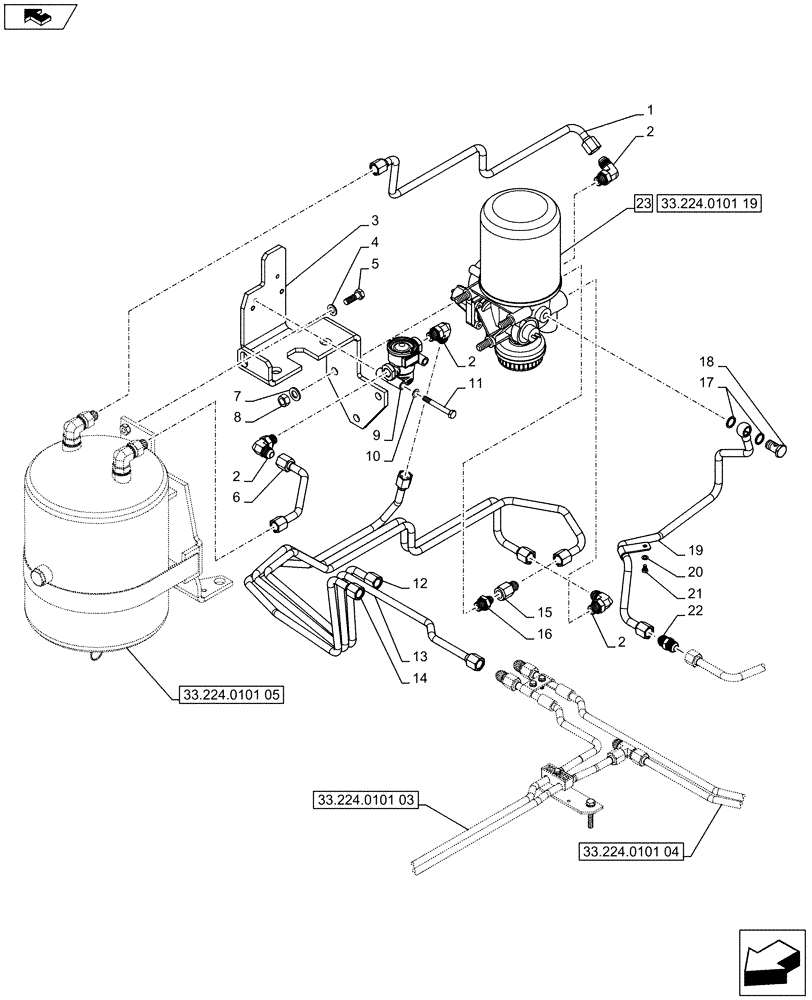

Запчасти Case IH PUMA 230 (33.224.0101[07]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - RIGHT PRESSURE LIMITING VALVE AND AIR PROCESSING UNIT (VAR.743922) (33) - BRAKES & CONTROLS

1

84482700

BRAKE LINE

1шт.

2

84553346

HYD CONNECTOR,M16 x 1.5

4шт.

2

47357474

HYD CONNECTOR

2шт.

3

84414635

BRACKET

1шт.

4

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

6

84413610

TUBE

1шт.

7

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

8

337475

NUT,M12, Cl 10

3шт.

9

84394097

PRESSURE LIMITER

1шт.

10

12601379

WAVE WASHER,Wave, M8.4

2шт.

11

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

12

84413626

TUBE

1шт.

13

47365753

BRAKE LINE

1шт.

14

47365755

BRAKE LINE

1шт.

15

87411460

REDUCER,7.64mm OD x 40.64 L

1шт.

16

5192907

HYD CONNECTOR,M16 x 1.5 x 35mm L

1шт.

17

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

18

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

19

84413999

PIPE

1шт.

20

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

21

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

22

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

23

84394092

AIR CONTROL

1шт.
