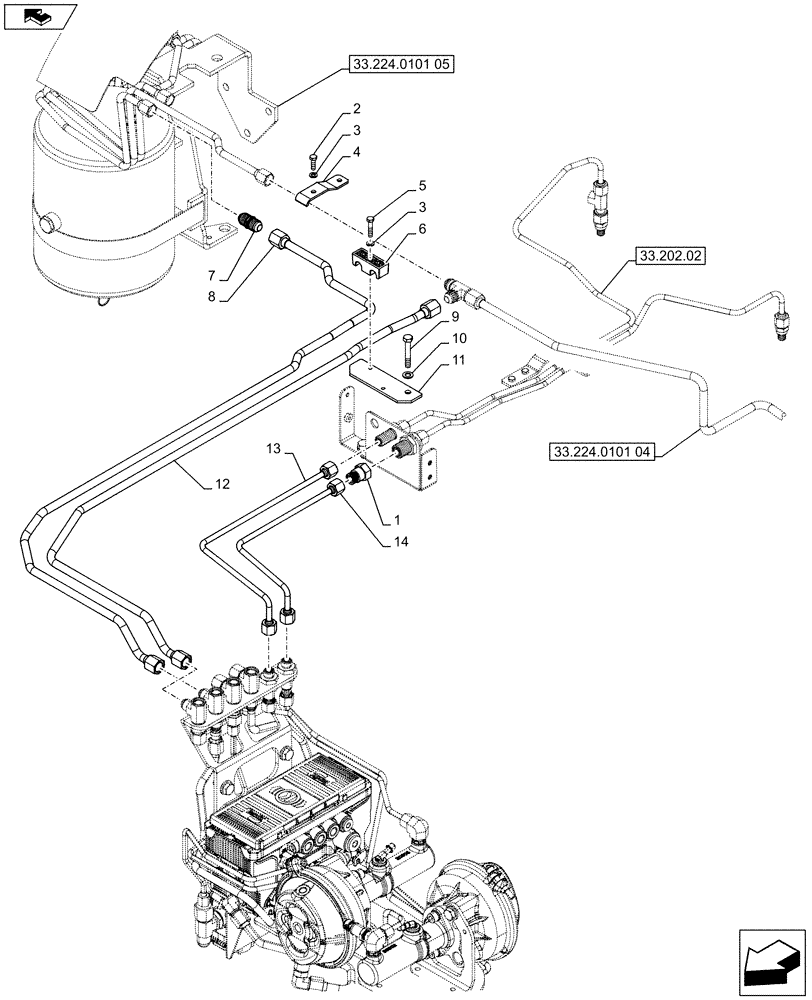

Запчасти Case IH PUMA 230 (33.224.0101[03]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - PIPES FROM EBM (VAR. 743922) (33) - BRAKES & CONTROLS

1

87582905

ORIFICE

1шт.

2

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

2

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

1шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

4

47370888

BRACKET

1шт.

5

86579344

BOLT,Hex, M6 x 35mm, Cl 10.9

1шт.

6

87571442

BRACKET

1шт.

7

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

8

47365747

BRAKE LINE

1шт.

9

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

11

84413693

BRACKET

1шт.

12

47365744

BRAKE LINE

1шт.

13

84521795

TUBE

1шт.

14

84521793

BRAKE LINE

1шт.
