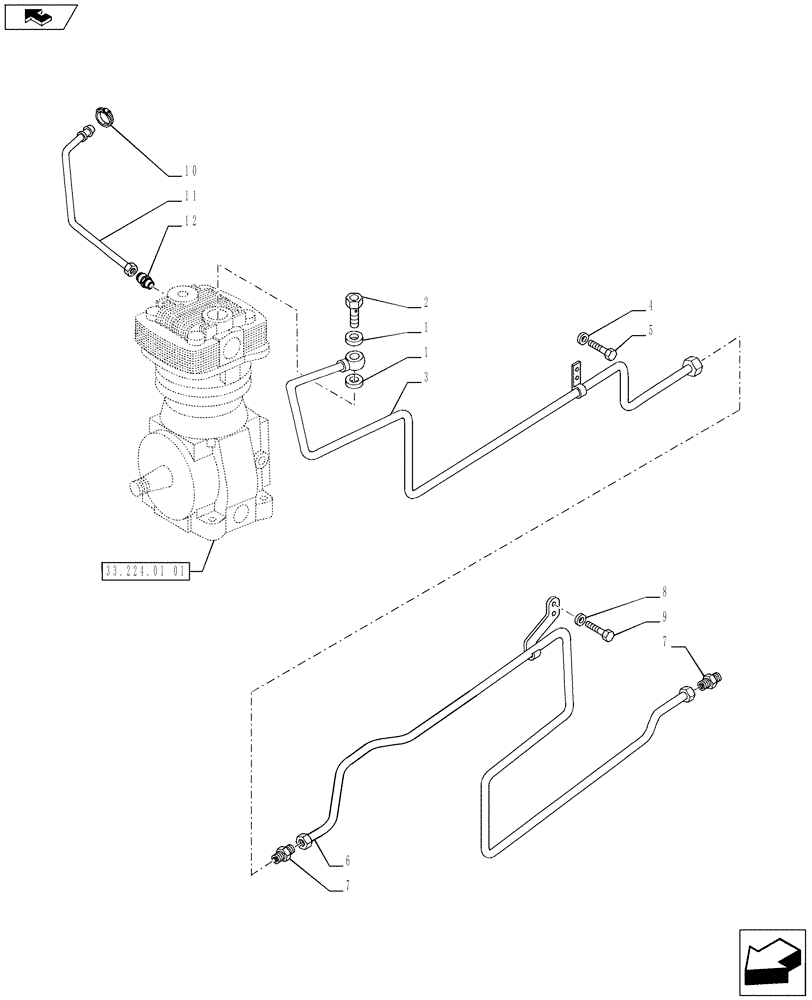

Запчасти Case IH PUMA 230 (33.224.01[04]) - PNEUMATIC TRAILER BRAKE - PIPES (VAR.729385-743170 / 743623; VAR.743171-728385 / 743624; VAR.743169-720178 / 743625) (33) - BRAKES & CONTROLS

1

82031552

COPPER WASHER,26.1mm ID x 32mm OD x 1.5mm Thk

M26 x 32 x 1.5

2шт.

2

82031550

BANJO BOLT,M26 x 1.50

, Serial Range: -C7154

1шт.

2

84385706

BANJO BOLT,M26 x 1.5 x 50mm

, Start Serial: D7154

2шт.

3

84181236

PIPE

1шт.

3

87495162

BRAKE LINE

1шт.

Parts Shown Are also Available in DIA Kit 710178214-718385214-719385214

1шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8 x 17

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

6

84181243

PIPE

1шт.

6

84143275

PIPE

1шт.

Parts Shown Are also Available in DIA Kit 710178214-718385214-719385214

1шт.

7

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

6 x 20

1шт.

10

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

1шт.

11

84322222

RIGID TUBE

1шт.

12

82038496

HYD CONNECTOR

1шт.
