(33.220.0202[02]) - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM - BREAKDOWN (VAR.743979 / 720418)

Запчасти Case IH PUMA 230 (33.220.0202[02]) - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM - BREAKDOWN (VAR.743979 / 720418) (33) - BRAKES & CONTROLS

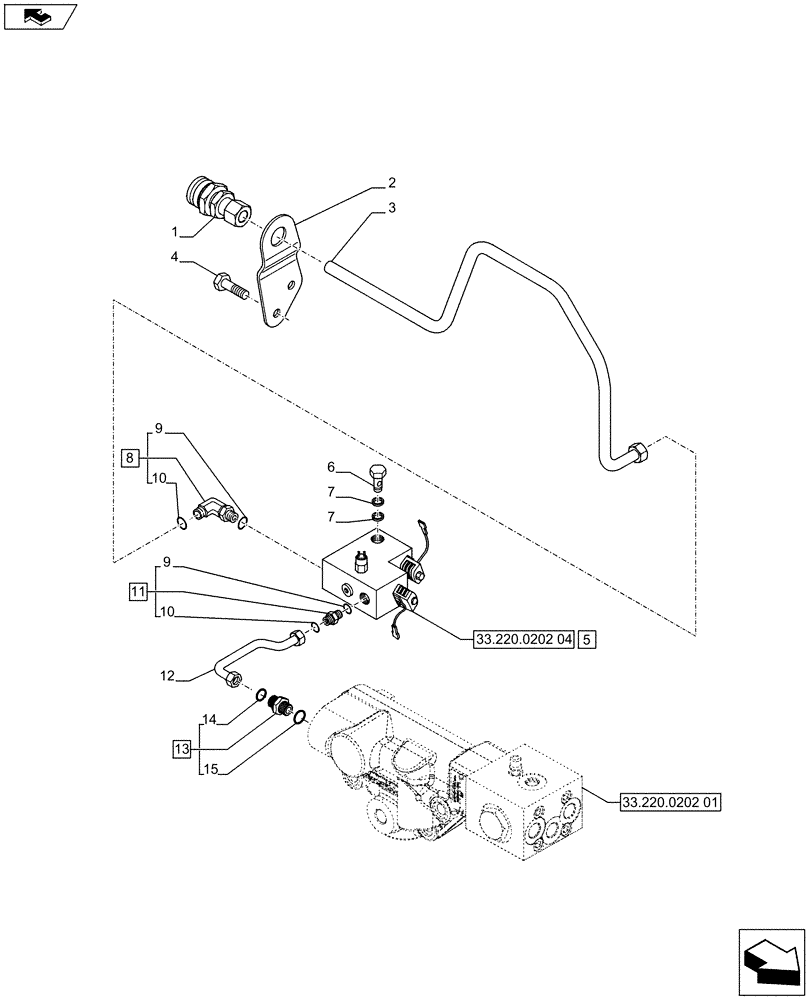

Схема запчастей Case IH PUMA 230 - (33.220.0202[02]) - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM - BREAKDOWN (VAR.743979 / 720418) (33) - BRAKES & CONTROLS
33.220.0202 04
9
15
3
33.220.0202 01
home
7
1
12
9
14
11
10
6
13
8
7
2
4
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5144514

HYDRAULIC VALVE

1шт.

2

5196322

BRACKET

1шт.

3

87608341

PIPE

Union Valve

1шт.

4

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

84177628

MANIFOLD

ASSY

1шт.

6

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

7

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D=18

2шт.

8

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Contains Ref. 9,10

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

11

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Contains Ref. 9,10

1шт.

12

87608337

PIPE

Block

1шт.

13

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Contains Ref. 14,15

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

RH Brake

1шт.

Выбрано товаров: 15
