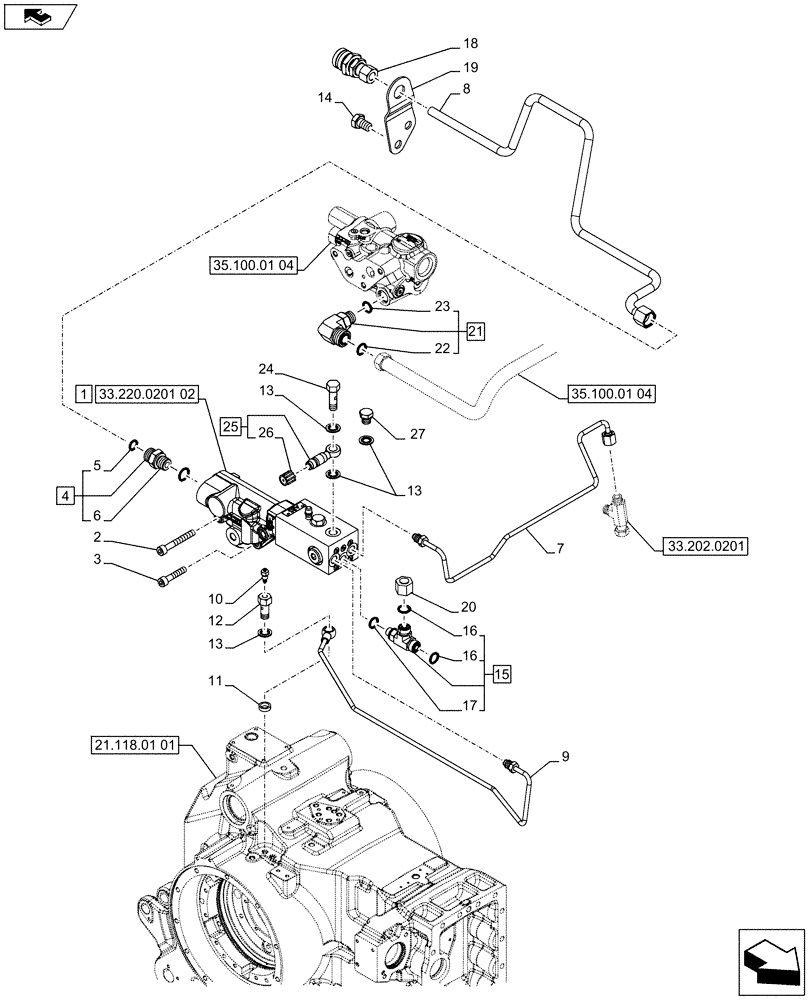

Запчасти Case IH PUMA 230 (33.220.0201[01]) - ABS SYSTEM - HYDRAULIC TRAILER BRAKE (UNIVERSAL) - BRAKING SYSTEM (VAR.743978 / 720414) (33) - BRAKES & CONTROLS

1

47467923

BRAKE VALVE

ASSY

1шт.

2

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

3

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Contains Ref. 5, 6

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

47479602

TUBE

LH, Brake

1шт.

8

87608334

TUBE

1шт.

9

47479600

TUBE

RH, Brake

1шт.

10

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

11

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

1шт.

12

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

4шт.

14

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Contains Ref. 16, 17

1шт.

16

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

17

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

18

5144514

HYDRAULIC VALVE

1шт.

19

5196322

BRACKET

1шт.

20

9625546

CAP,11/16" - 16 ORFS

1шт.

21

5185562

ELBOW

1шт.

22

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

24

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

25

82030175

BANJO FITTING,M8 x 1 x 53mm

Contains Ref. 26

1шт.

26

44995074

PLUG,M8 x 1.0

1шт.

27

47131496

PLUG,Hex, M12 x 1

M12 x 1

1шт.
