Запчасти Case IH PUMA 230 (33.220.0101[01]) - ABS SYSTEM - BRAKING LOGIC VALVE FOR CLOSED CENTRE LOAD SENSING HYD. - BRAKE LOGIC VALVE AND PIPES (VAR.743982 / 743896) (33) - BRAKES & CONTROLS

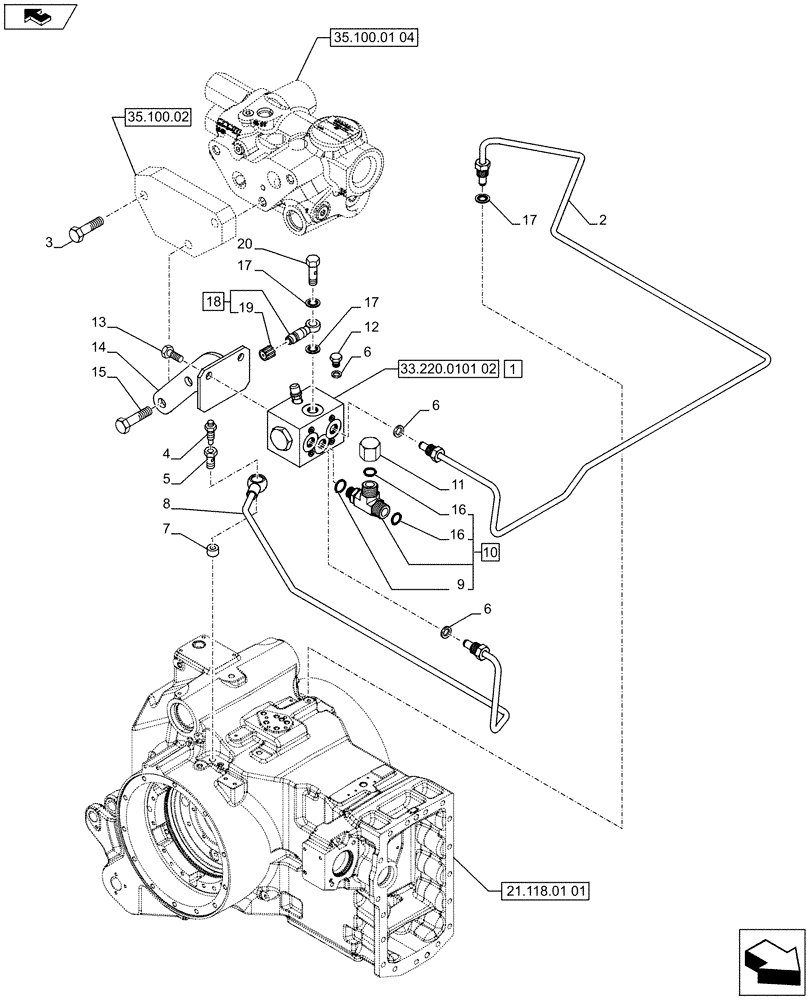

Схема запчастей Case IH PUMA 230 - (33.220.0101[01]) - ABS SYSTEM - BRAKING LOGIC VALVE FOR CLOSED CENTRE LOAD SENSING HYD. - BRAKE LOGIC VALVE AND PIPES (VAR.743982 / 743896) (33) - BRAKES & CONTROLS
9
17
1
4
5
1
17
18
15
35.100.02
16
10
16
20
7
13
home
1
21.
18.01 01
8
19
3
33.220.0101 02
35.100.01 04
12
14
6
17
6
1
2
6

Артикул

Название

Примечание

Количество

1

84565280

BRAKE VALVE

1шт.

2

47365956

PIPE

LH Brake

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

5

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

3шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

1шт.

8

87608326

BRAKE LINE

RH Brake

1шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

10

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Contains Ref. 16,19

1шт.

11

9625546

CAP,11/16" - 16 ORFS

2шт.

12

47131496

PLUG,Hex, M12 x 1

M 12 x 1

1шт.

13

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

M6 x 14

2шт.

14

87682609

SUPPORT

1шт.

15

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

2шт.

16

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

18

82030175

BANJO FITTING,M8 x 1 x 53mm

ASSY, Contains Ref. 19

1шт.

19

44995074

PLUG,M8 x 1.0

1шт.

20

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

Выбрано товаров: 20
