Запчасти Case IH PUMA 230 (33.204.1401[01]) - 4WD AXLE WITH BRAKE - BRAKE PIPING - C7090 (VAR.728195-728212) (33) - BRAKES & CONTROLS

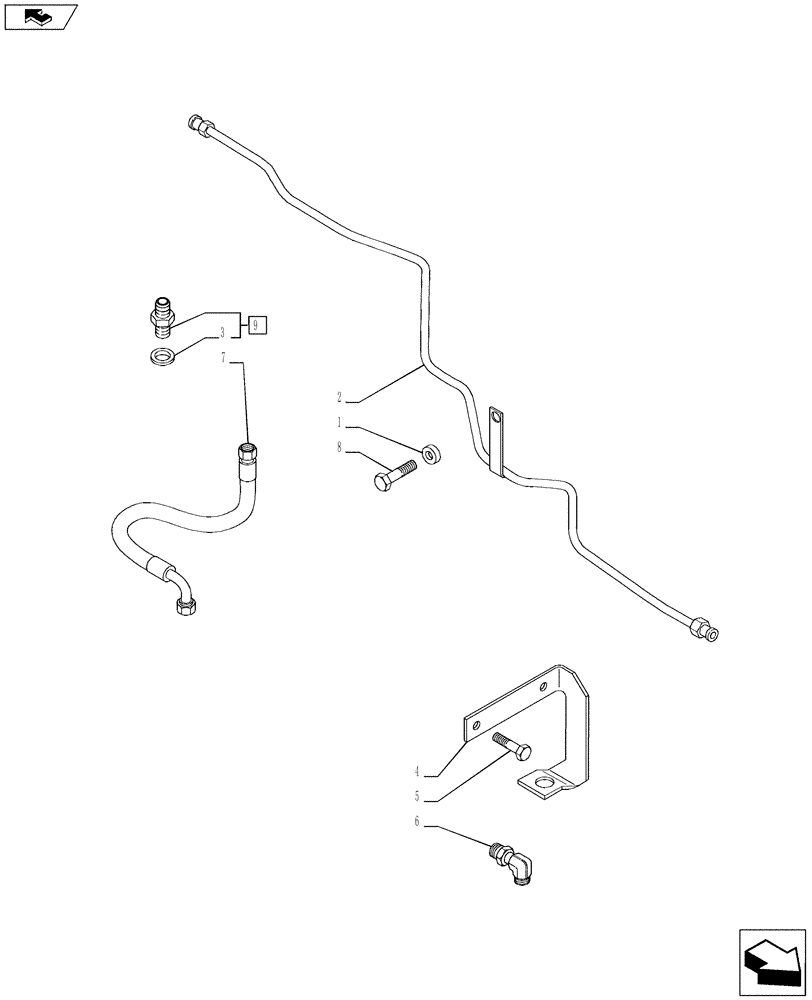

Схема запчастей Case IH PUMA 230 - (33.204.1401[01]) - 4WD AXLE WITH BRAKE - BRAKE PIPING - C7090 (VAR.728195-728212) (33) - BRAKES & CONTROLS
8
5
2
9
4
1
home
7
6
3

Артикул

Название

Примечание

Количество

1

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

2

84127864

BRAKE LINE

1шт.

3

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

4

87392393

SUPPORT

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

87326942

HYD CONNECTOR

11/16 - 16

1шт.

7

87318011

HOSE

11/16 - 16, 1/2 - 20, MM 590

1шт.

8

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

9

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

Contains Ref. 3

1шт.

Выбрано товаров: 9
