(33.204.14[01A]) - 4WD AXLE WITH BRAKE - FRONT BRAKE VALVE PIPE - D7090 (VAR.728195-743963-743964)

Запчасти Case IH PUMA 230 (33.204.14[01A]) - 4WD AXLE WITH BRAKE - FRONT BRAKE VALVE PIPE - D7090 (VAR.728195-743963-743964) (33) - BRAKES & CONTROLS

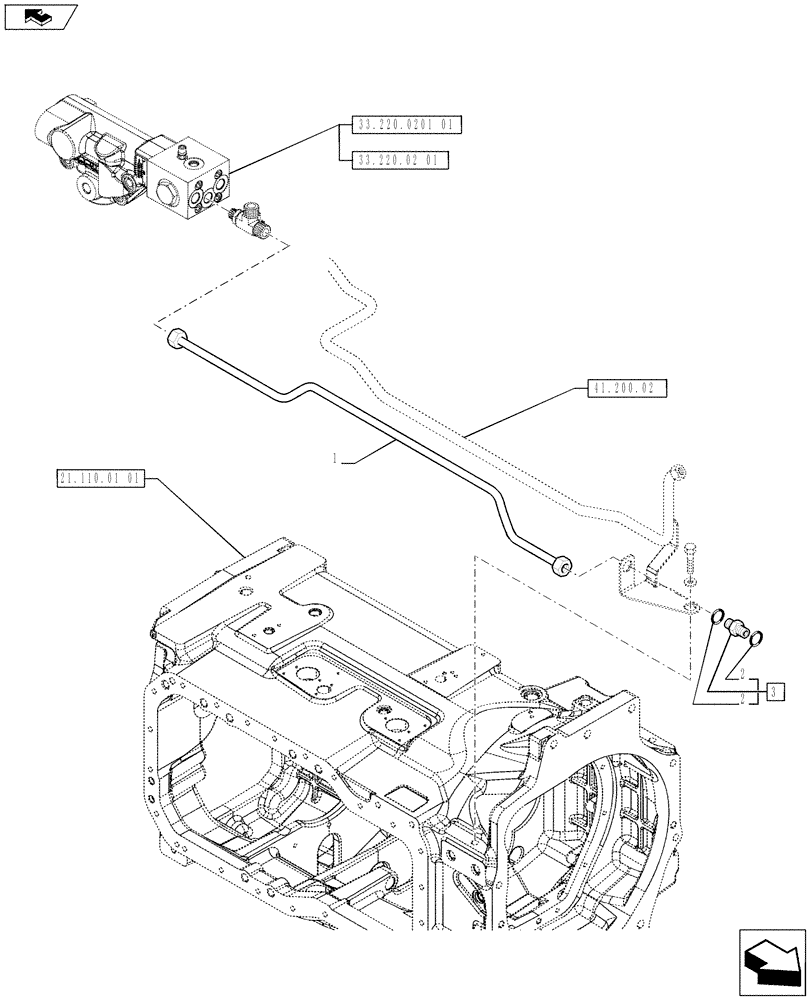

Схема запчастей Case IH PUMA 230 - (33.204.14[01A]) - 4WD AXLE WITH BRAKE - FRONT BRAKE VALVE PIPE - D7090 (VAR.728195-743963-743964) (33) - BRAKES & CONTROLS
1
home
2
33.220.02 01
33.220.0201 01
3
2
21.110.01 01
41.200.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87722744

HYD TUBE

1шт.

2

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

3

47136517

HYD CONNECTOR,ORFS 11/16"-16

Contains Ref. 2

1шт.

Выбрано товаров: 3
