Запчасти Case IH PUMA 230 (33.204.0101) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - BRAKE GEARS (VAR.743964) (33) - BRAKES & CONTROLS

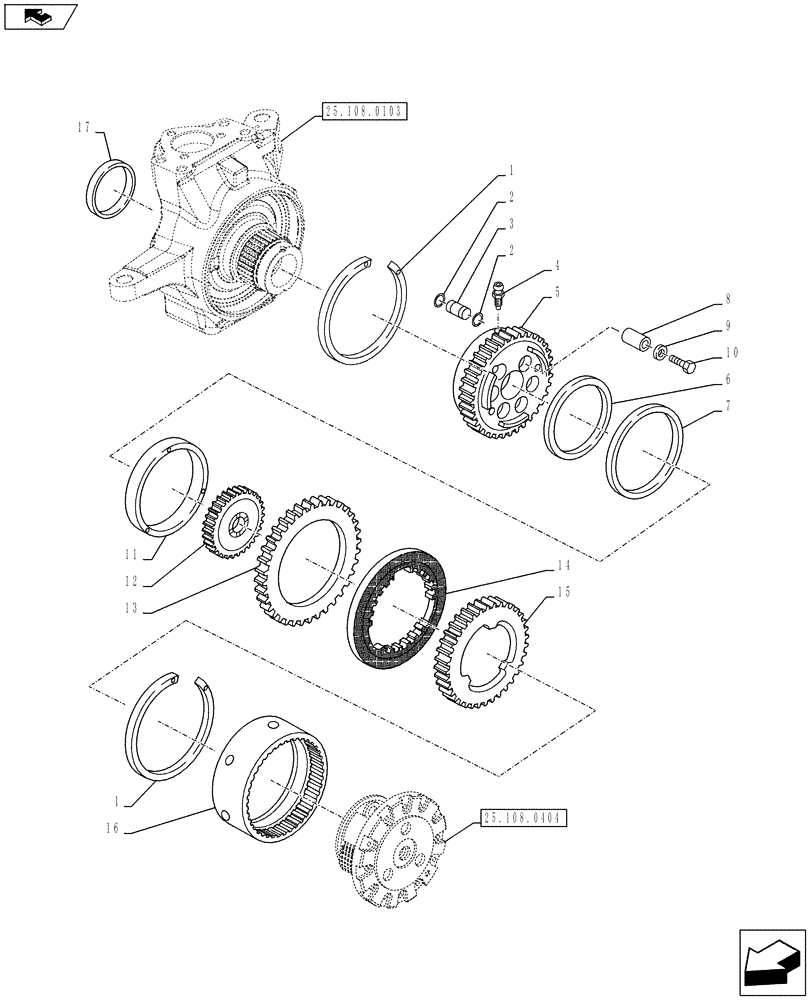

Схема запчастей Case IH PUMA 230 - (33.204.0101) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - BRAKE GEARS (VAR.743964) (33) - BRAKES & CONTROLS
11
14
6
25.108.0404
12
7
4
3
2
17
9
2
16
1
5
13
10
1
8
home
25.108.0103
15

Артикул

Название

Примечание

Количество

1

5178857

CIRCLIP

2шт.

2

14456980

O-RING,10.77mm ID x 2.62mm

4шт.

3

5173504

PAWL,16mm OD x 25mm L

2шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5181994

HOUSING

2шт.

6

5181566

SEAL,198.6mm ID x 205.4mm OD x 3.4mm Thk

2шт.

7

5178850

PISTON RING,Square, 3.4mm Thk x 229.6mm ID, 80 Duro

2шт.

8

5179560

BUSHING,16.5mm ID x 27mm OD x 27.8mm L

12шт.

9

11200274

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

12шт.

10

16334430

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

12шт.

11

5181567

RING

2шт.

12

5182010

HUB,14T Internal / 60T External

2шт.

13

5178813

BRAKE DISC,191mm ID x 266.5mm OD x 4.95mm Thk

2шт.

14

5178903

BRAKE DISC,175mm ID x 247mm OD x 4.5mm Thk

2шт.

15

5181929

BRAKE DISC,182mm ID x 266.5mm OD x 18mm Thk

2шт.

16

5181933

RING GEAR

2шт.

17

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27 mm

2шт.

Выбрано товаров: 17
