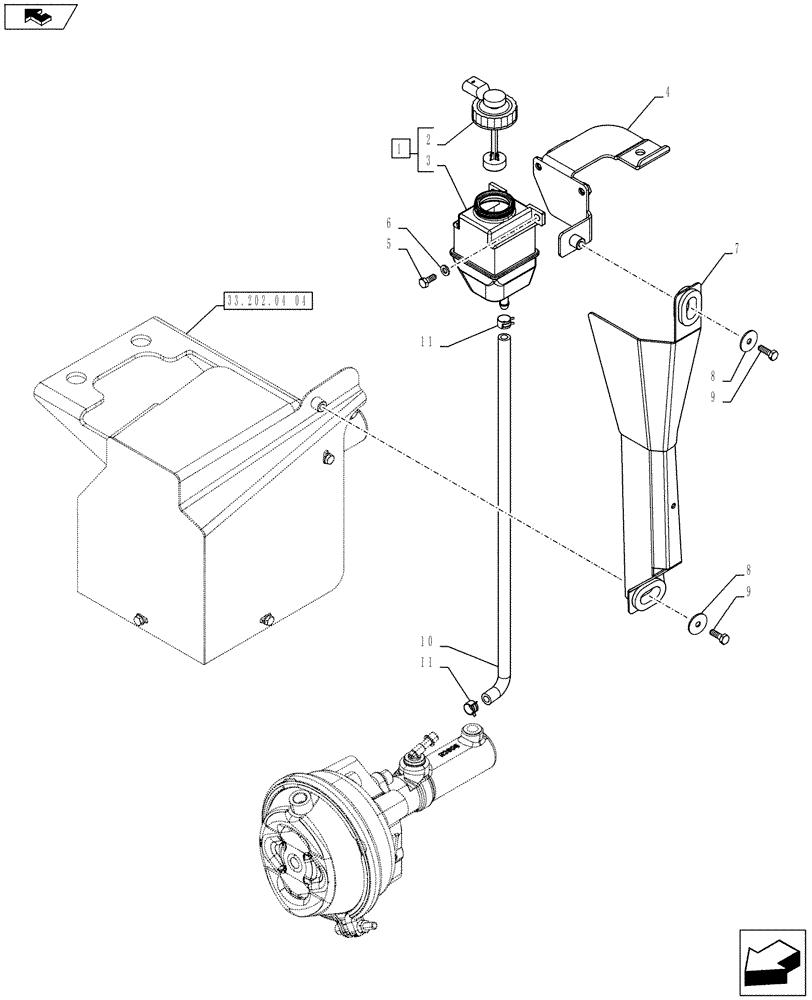

Запчасти Case IH PUMA 230 (33.202.04[06]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - FRONT BRAKE FLUID RESERVOIR (VAR. 743922) (33) - BRAKES & CONTROLS

1

82036189

TANK

ASSY, Contains Ref. 2, 3

1шт.

2

82031428

PLUG

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

84526229

BRACKET

1шт.

5

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

6

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

7

84528841

COVER

1шт.

8

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

9

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

10

87536570

HOSE,7.60 mm ID x 275.00 mm, SAE 30R2

1шт.

11

82011382

HOSE CLAMP,15mm - 17mm

2шт.
