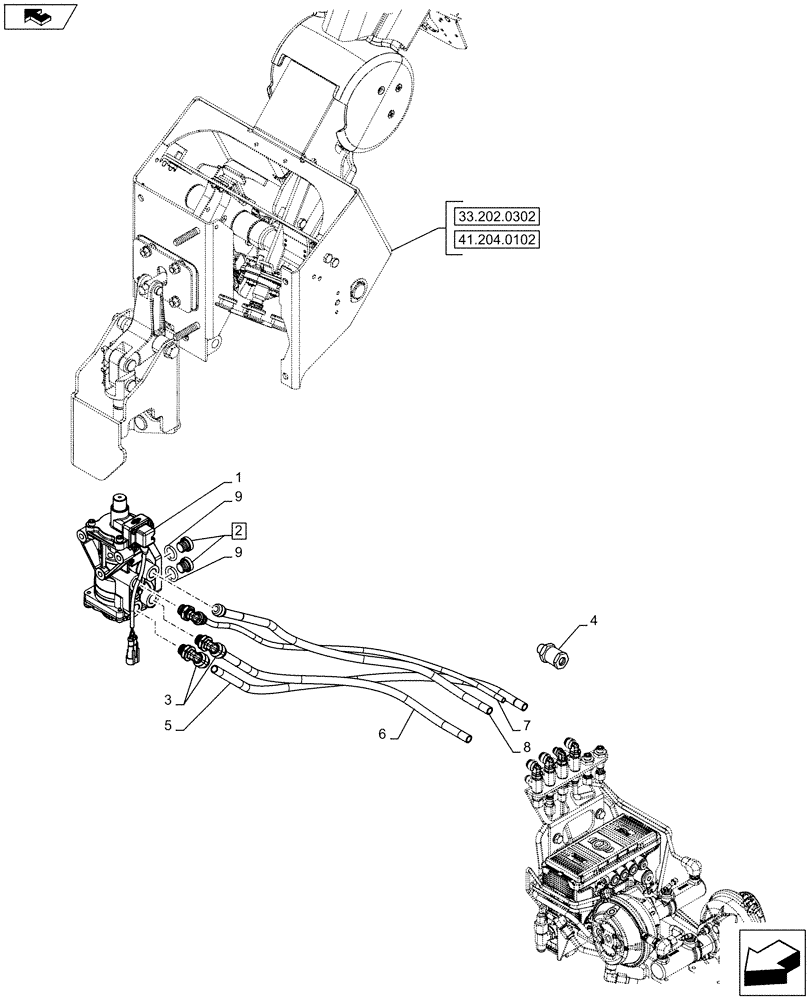

Запчасти Case IH PUMA 230 (33.202.04[01]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE - FOOT BRAKE VALVE (VAR. 743922) (33) - BRAKES & CONTROLS

1

84394105

BRAKE VALVE

1шт.

2

1350997

PLUG,Rnd Hd, Int Hex Skt, M16 x 1.5 x 17.30mm, ORB

Contains Ref. 9

2шт.

3

84514789

90 ELBOW,M16 x 1.5mm, for 8mm OD Hose

M16 x 1.5mm, for 8mm OD Hose

1шт.

3

84514790

90 ELBOW,M16 x 1.5mm, for 12mm OD Hose

M16 x 1.5mm, for 12mm OD Hose

1шт.

3

47369197

90 ELBOW,M16 x 1.5mm, for 16mm OD Hose

M16 x 1.5mm, for 16mm OD Hose

1шт.

4

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

MG12 / M16 x 1.5mm

1шт.

5

47369187

HOSE,9mm ID x 1200mm L

OD 12mm, 1200mm, W/O Fittings

1шт.

6

47369174

HOSE,14mm ID x 1200mm L

OD 16mm, 1200mm, W/ 1 90 Deg. Fitting

1шт.

7

47369182

HOSE,8mm ID x 1200mm L

OD 8mm, 1200mm, W/ 1 90 Deg. Fitting

1шт.

8

47369176

HOSE,14mm ID x 1200mm L

OD 16mm, 1200mm, W/ 1 Straight Fitting

1шт.

9

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

M16

1шт.
