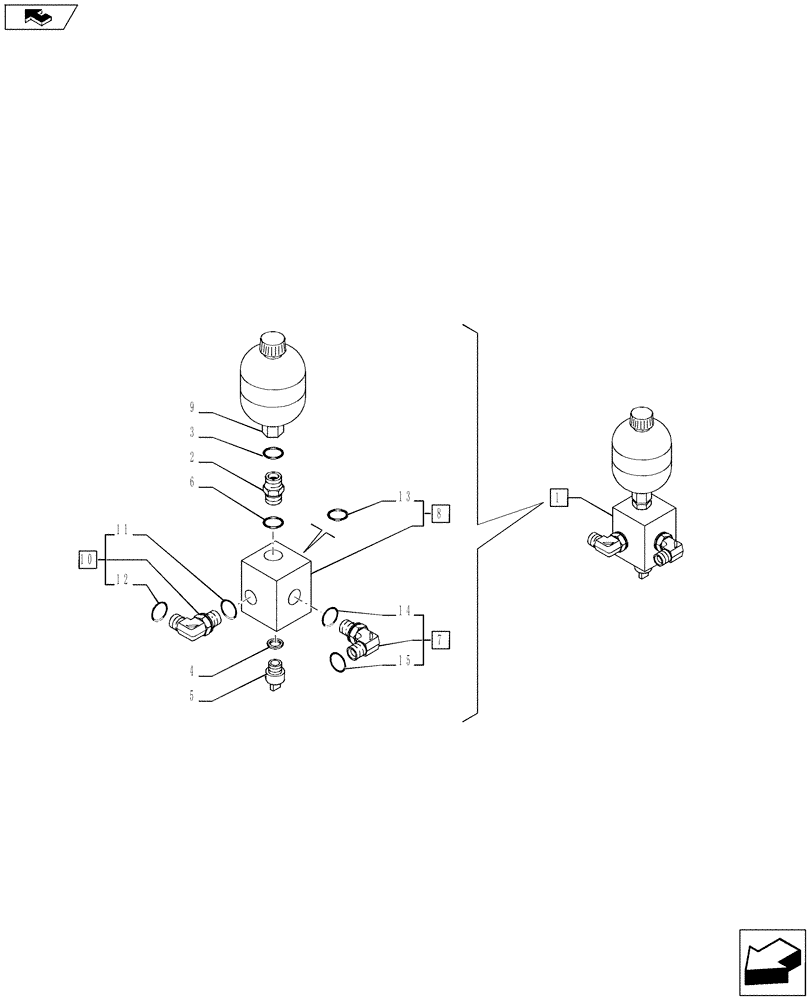

Запчасти Case IH PUMA 230 (33.202.03[04]) - POWER BRAKE - BREAKDOWN (33) - BRAKES & CONTROLS

1

87351567

BRAKE BOOSTER

Contains Ref. 2-15

1шт.

2

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

3

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

87384755

SWITCH ASSY

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

5199763

HYD CONNECTOR

Contains Ref. 14,15

1шт.

8

5199762

BLOCK

Contains Ref. 13

1шт.

9

5195043

ACCUMULATOR,0.75L

1шт.

10

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Contains Ref. 11,12

1шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

14

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.
