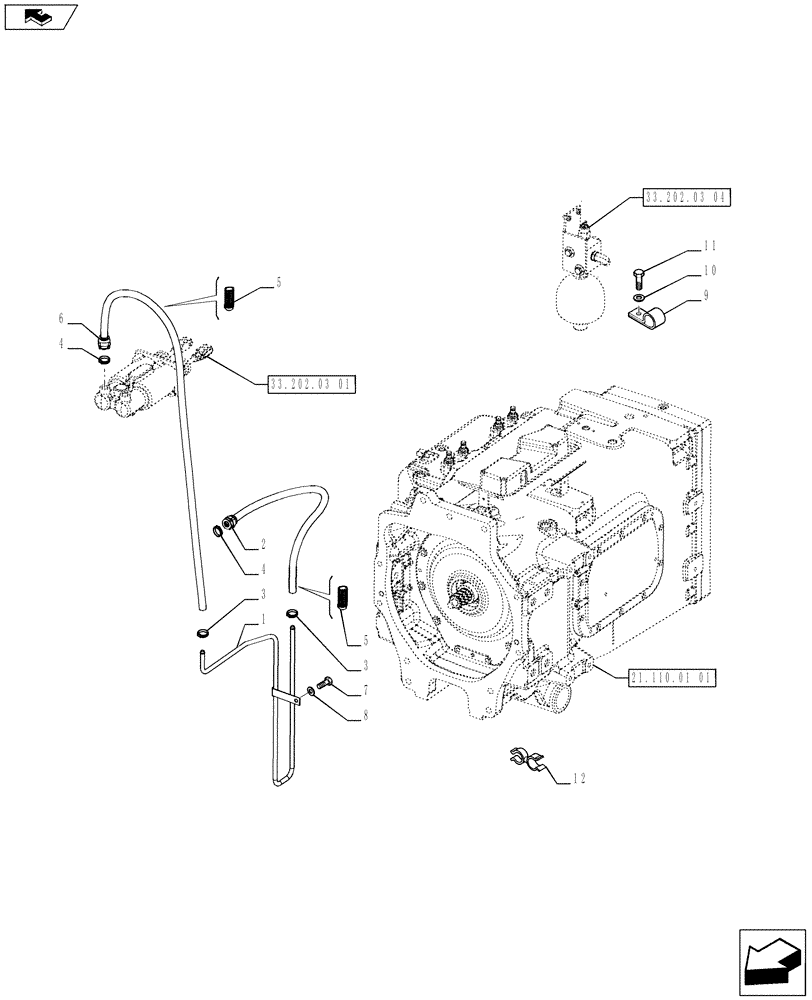

Запчасти Case IH PUMA 230 (33.202.03[03]) - BRAKE PIPING (33) - BRAKES & CONTROLS

1

87482498

PIPE

1шт.

2

87695287

FLEXIBLE HOSE

1шт.

3

87695291

COLLAR

2шт.

4

87695284

END FITTING

RH

2шт.

5

87695290

HOSE PROTECTION

LH

1шт.

6

87695287

FLEXIBLE HOSE

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

11

15904507

SCREW,Pozidriv Pan Hd, M5.5 x 1.8 x 16mm

1шт.

12

87586327

CLIP

1шт.
