Запчасти Case IH PUMA 230 (33.202.03[02]) - BRAKE PIPING (VAR.743348 / 743610; VAR.743332 / 743609) (33) - BRAKES & CONTROLS

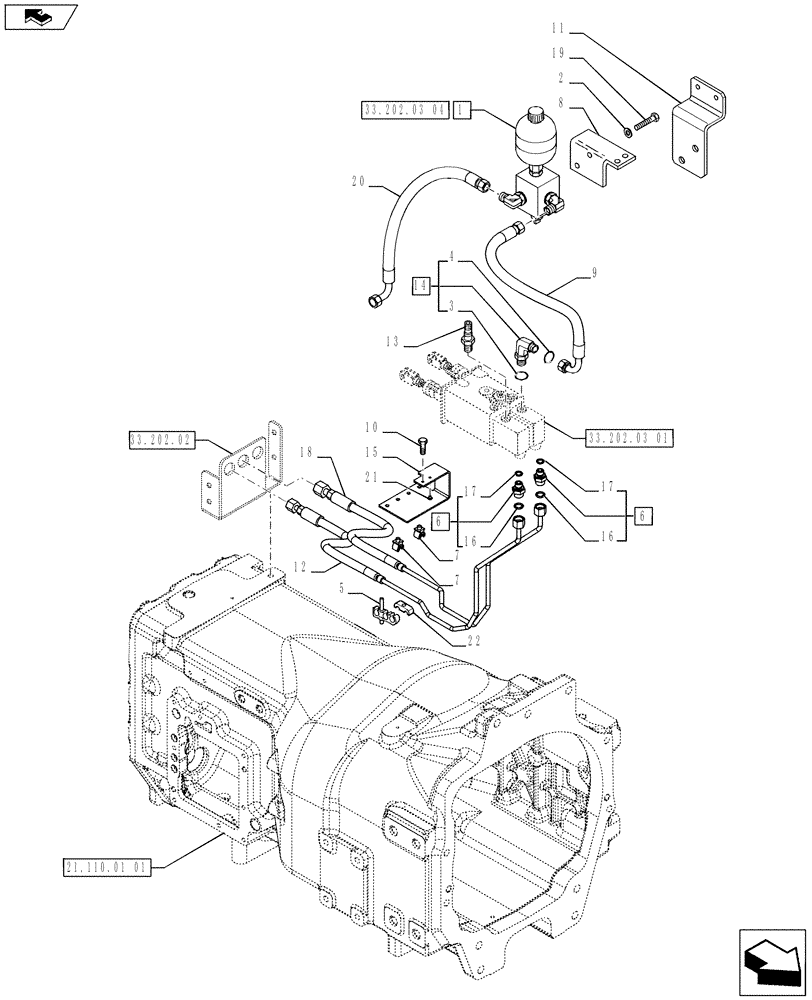

Схема запчастей Case IH PUMA 230 - (33.202.03[02]) - BRAKE PIPING (VAR.743348 / 743610; VAR.743332 / 743609) (33) - BRAKES & CONTROLS
33.202.03 04
home
21.110.01 01
33.202.02
33.202.03 01
7
2
11
4
18
20
1
9
8
7
6
17
14
6
22
13
3
17
5
10
16
19
12
15
21
16

Артикул

Название

Примечание

Количество

1

87351567

BRAKE BOOSTER

ASSY

1шт.

2

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

5

14582480

CLIP

1шт.

Standard Equipment

1шт.

Only for VAR.743348 (Only for CVT Models)

1шт.

6

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Contains Ref. 16,17

2шт.

7

87313304

CLIP

2шт.

8

87332526

SUPPORT

1шт.

Standard Equipment

1шт.

9

87348003

HOSE,9.53mm ID x 540mm L, SAE 100R2

1шт.

10

16288324

FLANGE BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

MM.80

2шт.

11

87648216

BRACKET

1шт.

Only for VAR.743348 (Only for CVT Models)

1шт.

Only for VAR.743332 (Only for CVT Models)

1шт.

12

87591784

PIPE

RH

1шт.

Standard Equipment

1шт.

Only for VAR.743348 (Only for CVT Models)

1шт.

12

87313214

TUBE,8 mm OD

RH

1шт.

Only for VAR.743332 (Only for CVT Models)

1шт.

13

82029114

FITTING,M16 x 1.5 x 51mm L

1шт.

14

82015686

ELBOW,M16 x 1.5 x 37.5mm

Contains Ref. 3,4

1шт.

15

87565907

SUPPORT

1шт.

16

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

17

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

2шт.

18

87746575

PIPE

LH

1шт.

Standard Equipment

1шт.

Only for VAR.743348 (Only for CVT Models)

1шт.

18

87313215

TUBE

LH

1шт.

Only for VAR.743332 (Only for CVT Models)

1шт.

19

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

M6 x 2.0 x 14

2шт.

20

87314105

HOSE,9.53mm ID x 800mm L, SAE 100R2

1шт.

21

14643294

RIVET

2шт.

22

82035645

CLIP,8mm ID

3шт.

Only for VAR.743332

1шт.

Выбрано товаров: 36
