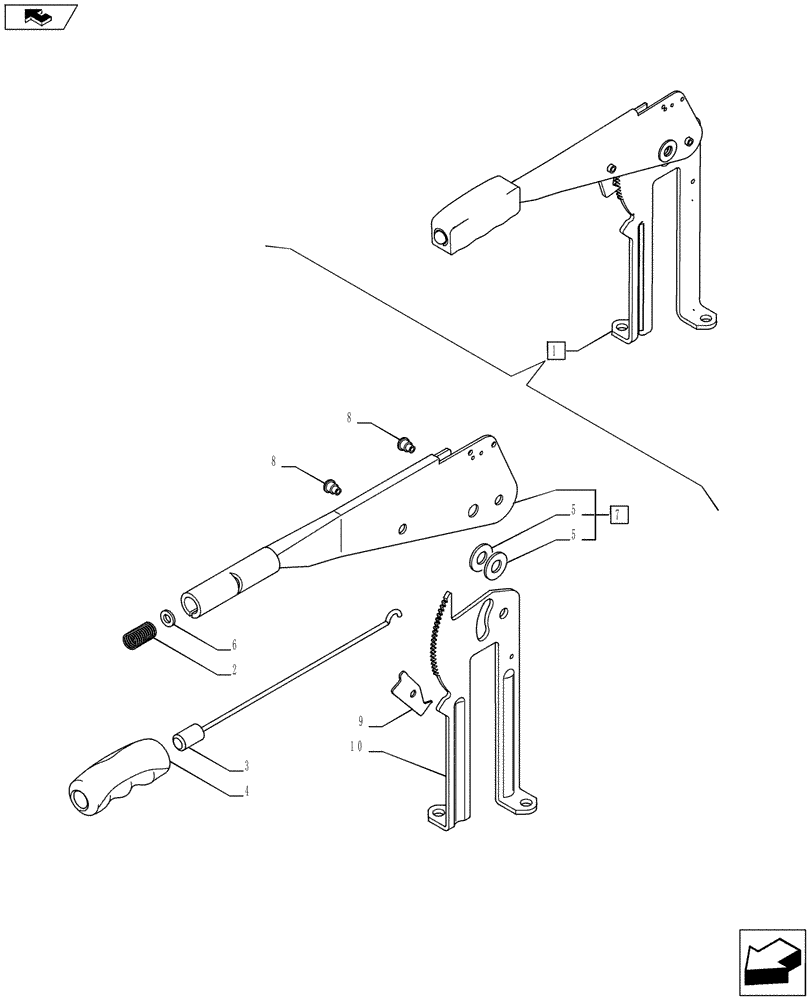

Запчасти Case IH PUMA 230 (33.110.02[02]) - HANDBRAKE CONTROL - BREAKDOWN (33) - BRAKES & CONTROLS

1

84174329

BRAKE LEVER

Contains Ref. 2-10

1шт.

2

84199076

SPRING,11.25mm OD x 44.5mm L

1шт.

3

81870377

BUTTON

1шт.

4

81866090

HANDLE GRIP

1шт.

5

81866089

WASHER,Flat, 12.00mm ID x 23.00mm OD x 2.00mm

2шт.

6

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

7

84174328

BRAKE LEVER

ASSY, Contains Ref. 5

1шт.

8

82000812

PIN,7.8mm OD x 7.4mm L

2шт.

9

82863025

PAWL,4.5mm Thk

1шт.

10

84174325

SUPPORT

1шт.
