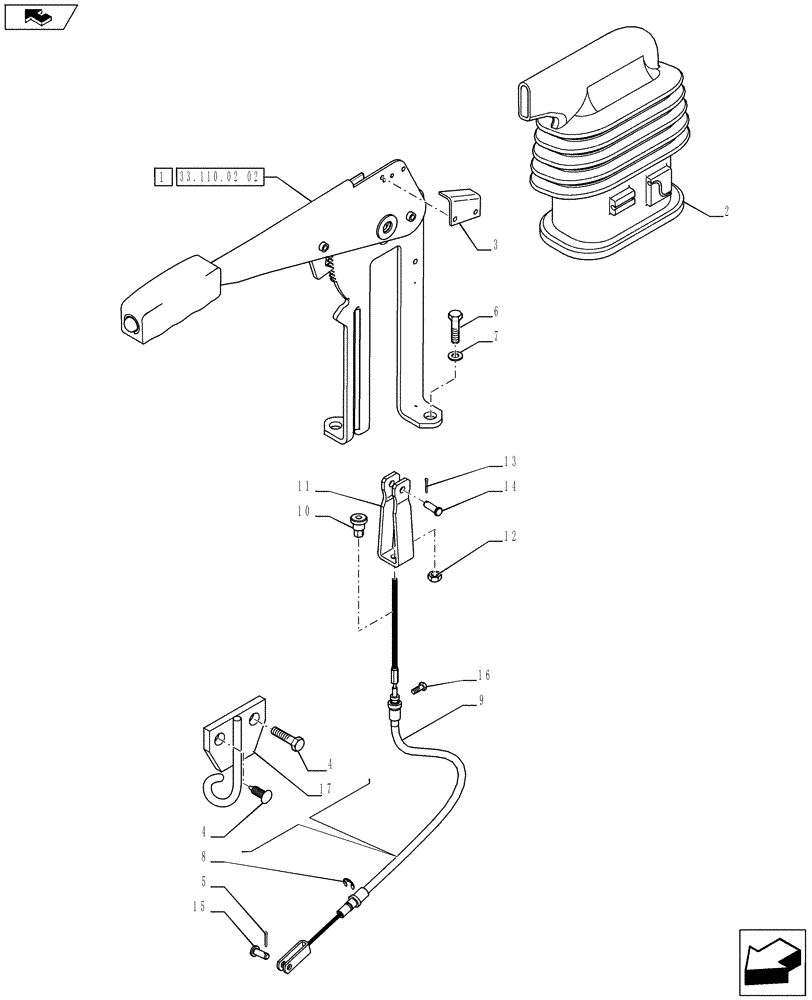

Запчасти Case IH PUMA 230 (33.110.02[01]) - HANDBRAKE CONTROL (33) - BRAKES & CONTROLS

1

84174329

BRAKE LEVER

ASSY

1шт.

2

84213451

BOOT

1шт.

3

84199077

PROTECTION PLATE

1шт.

4

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

Standard Equipment

1шт.

4

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

Mechanical Cab Suspension, VAR.720635 - Not Compatible with 520/85 R46 Tyres

1шт.

5

10766901

COTTER PIN,M3.2 x 25

1шт.

6

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

8

11087374

CIRCLIP,M13

1шт.

9

84140203

BOWDEN CONTROL

1шт.

10

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

1шт.

11

84140224

CLEVIS

1шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

13

81813880

COTTER PIN,3/32" x 3/4"

1шт.

14

83902558

PIN,3/8" x 1.312"

1шт.

15

10033411

PIN,10mm OD x 27mm L

1шт.

16

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

17

82034369

SLIDE GUIDE

1шт.

Mechanical Cab Suspension, VAR.720635 - Not Compatible with 520/85 R46 Tyres

1шт.
