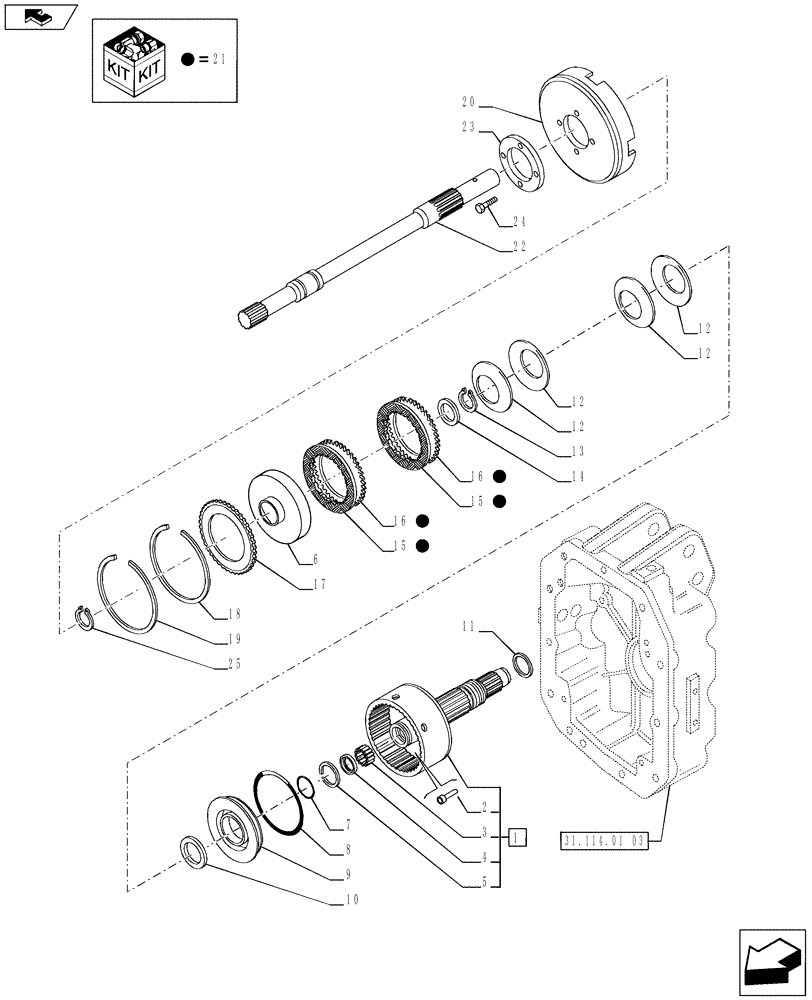

Запчасти Case IH PUMA 230 (31.114.03[01]) - PTO, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

87558759

PTO SHAFT

Contains Ref. 2-5

1шт.

2

5182714

TUBE

1шт.

3

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

4

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

5

5182717

SNAP RING,1.5mm Thk

1шт.

6

84382728

HUB

1шт.

7

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

8

5182703

GASKET,119.55mm ID x 127mm OD x 3.2mm Thk

1шт.

9

5182697

PISTON

1шт.

10

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

11

5175983

SEALING RING,46mm ID

SEALRING

3шт.

12

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

12шт.

13

5191305

CIRCLIP,54mm ID

1шт.

14

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

15

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

8шт.

16

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

CLUTCH DISK 2 mm Thk

1шт.

16

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

CLUTCH DISK 2.2 mm Thk

1шт.

17

5198772

CLUTCH PLATE,94.5mm ID x 152.6mm OD x 9.5mm Thk

1шт.

18

5162251

CIRCLIP,142.5mm ID

1шт.

19

81864341

SPRING,148.35mm ID

8шт.

20

84382726

COVER,192mm OD x 31mm W

1шт.

21

5198796

CLUTCH PLATE,31.2mm Thk

Contains Ref. 15,16

1шт.

22

87536263

SHAFT

1шт.

23

84382729

SPACER

1шт.

24

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

M6 x 20

4шт.

25

11068076

SNAP RING,M32, Ext

2шт.
