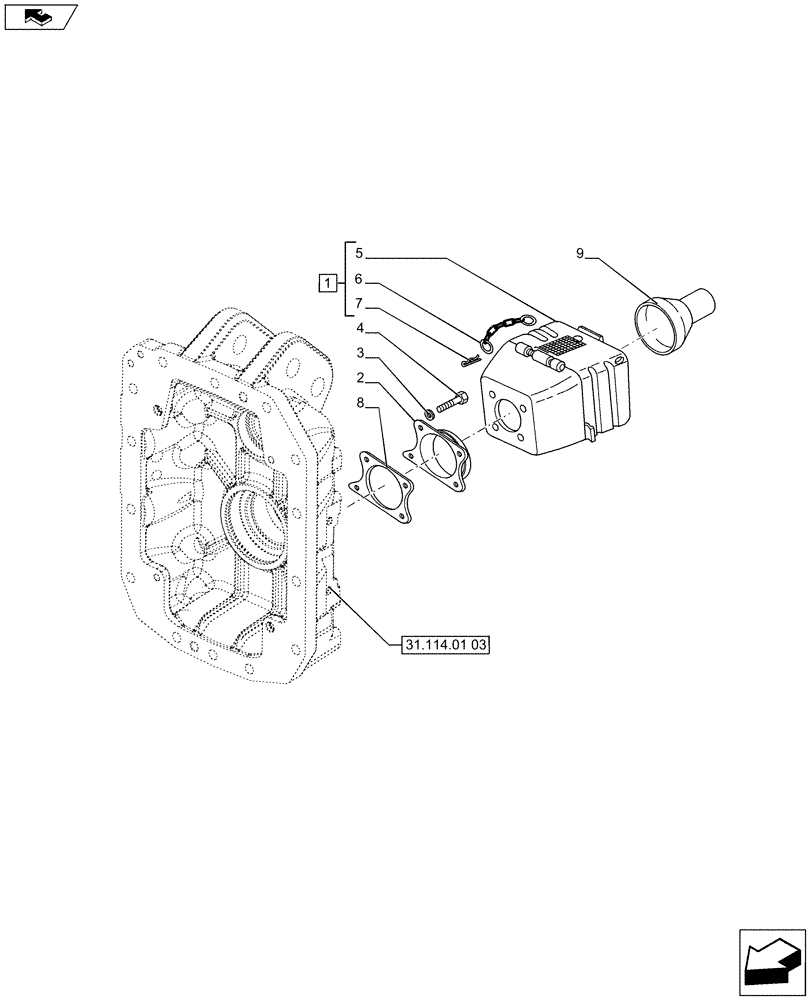

Запчасти Case IH PUMA 230 (31.114.0203) - POWER TAKE-OFF GUARD FLIP UP PERFORATED (VAR.743221/743613; VAR.744457-744458/743100) (31) - IMPLEMENT POWER TAKE OFF

1

82032577

GUARD

Contains Ref. 5,6,7

1шт.

2

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

4

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

82024033

CHAIN

1шт.

7

82026318

COTTER PIN,1/8 x 2 5/16

1шт.

8

47131825

GUARD

1шт.

9

47125899

COVER,109mm L

1шт.
