(31.104.02[01]) - PTO, CLUTCH - VALVE AND FITTING

Запчасти Case IH PUMA 230 (31.104.02[01]) - PTO, CLUTCH - VALVE AND FITTING (31) - IMPLEMENT POWER TAKE OFF

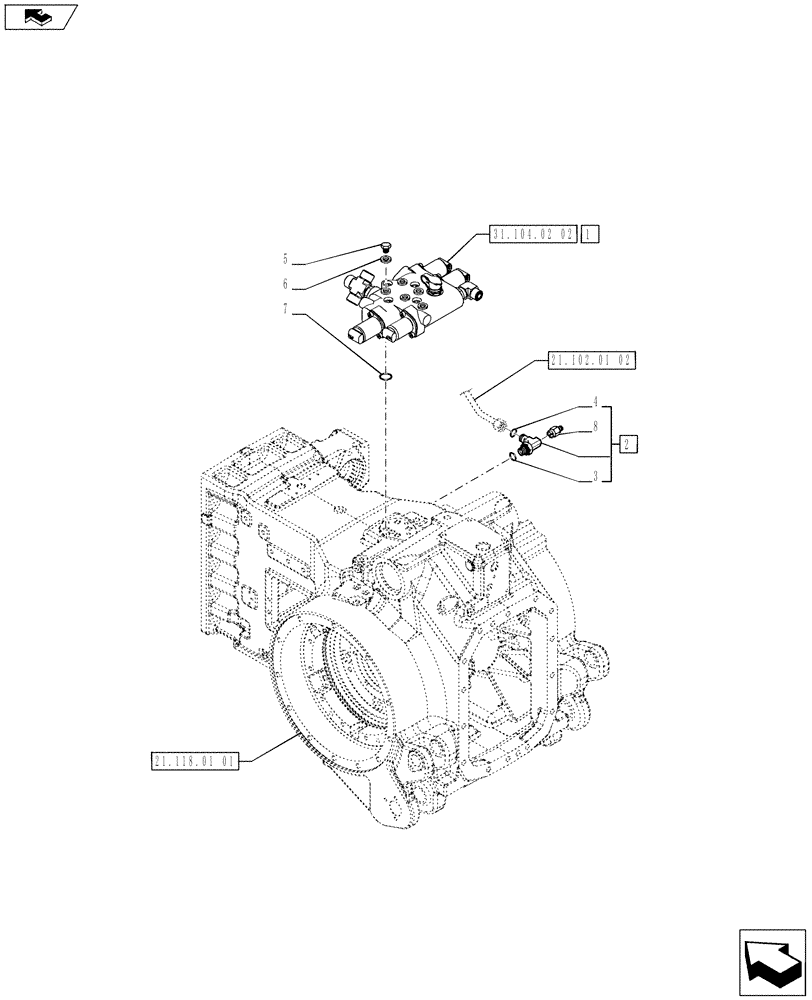

Схема запчастей Case IH PUMA 230 - (31.104.02[01]) - PTO, CLUTCH - VALVE AND FITTING (31) - IMPLEMENT POWER TAKE OFF
4
1
21.118.01 01
31.104.02 02
home
21.102.01 02
8
6
7
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87525222

DISTRIBUTOR

Low Pressure

1шт.

2

5195456

HYD CONNECTOR

1шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

5

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

1шт.

7

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

8

82008236

SWITCH ASSY

1шт.

Выбрано товаров: 8
