Запчасти Case IH PUMA 230 (27.120.0310) - ABS SYSTEM - BAR AXLE 112" - GEARS AND SHAFT (VAR. 744433-744434) (27) - REAR AXLE SYSTEM

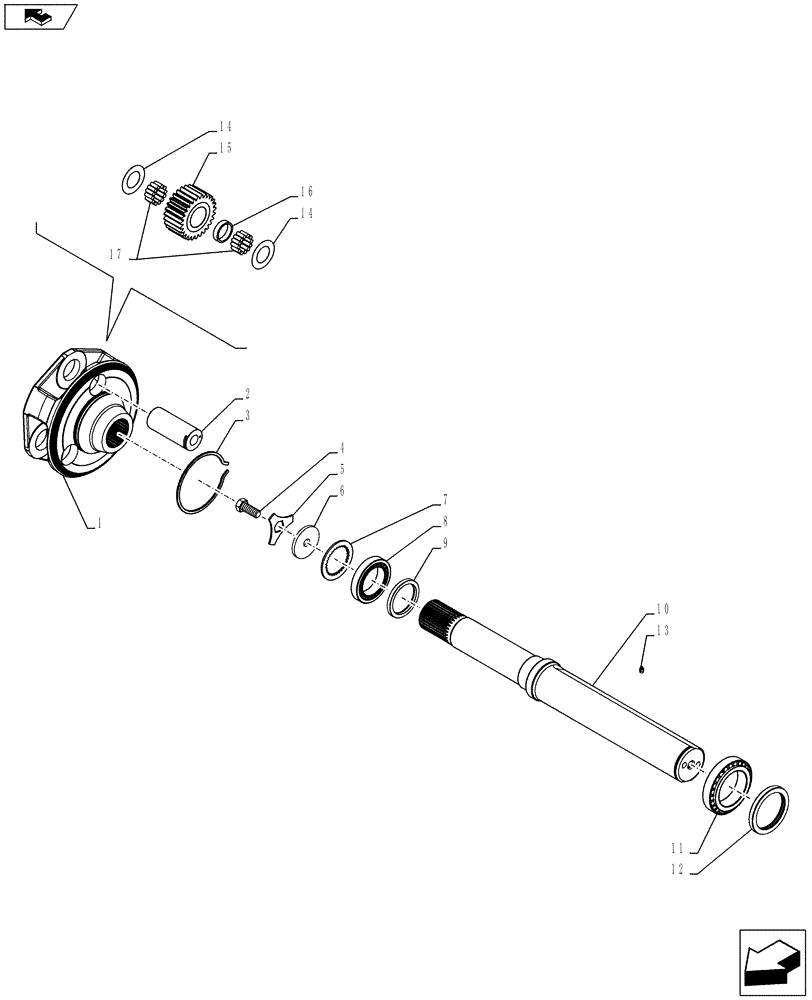

Схема запчастей Case IH PUMA 230 - (27.120.0310) - ABS SYSTEM - BAR AXLE 112" - GEARS AND SHAFT (VAR. 744433-744434) (27) - REAR AXLE SYSTEM
5
9
8
7
2
3
14
16
14
17
home
6
11
1
4
12
13
15
10

Артикул

Название

Примечание

Количество

2

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

3

5136132

CIRCLIP,4mm Thk

2шт.

4

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

5

5124397

LOCKING PLATE

2шт.

6

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

2шт.

7

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

8

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

2шт.

9

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

10

87309276

MAIN SHAFT

2шт.

11

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

2шт.

12

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

13

13407211

LUBE NIPPLE,M10 x 1

2шт.

14

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

15

87307351

IDLER PINION

6шт.

16

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

17

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

Выбрано товаров: 16
