Запчасти Case IH PUMA 230 (27.120.0306) - ABS SYSTEM - FINAL DRIVE - GEARS AND SHAFTS (VAR. 744430) (27) - REAR AXLE SYSTEM

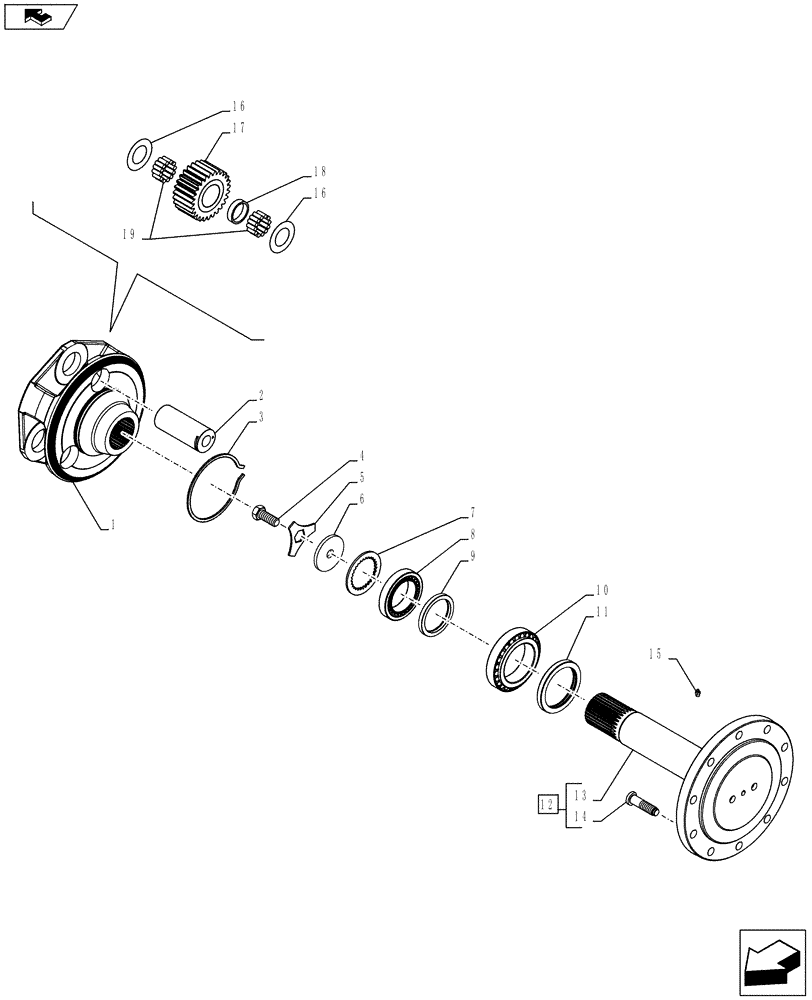

Схема запчастей Case IH PUMA 230 - (27.120.0306) - ABS SYSTEM - FINAL DRIVE - GEARS AND SHAFTS (VAR. 744430) (27) - REAR AXLE SYSTEM
home
5
15
14
7
12
1
3
17
8
13
16
10
6
18
19
11
16
9
4
2

Артикул

Название

Примечание

Количество

1

84524194

SUPPORT

2шт.

2

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

3

5136132

CIRCLIP,4mm Thk

D=175

2шт.

4

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

5

5124397

LOCKING PLATE

2шт.

6

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

2шт.

7

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

8

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

2шт.

9

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

10

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

2шт.

11

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

12

87311159

WHEEL SHAFT

ASSY, Contains Ref. 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

2шт.

14

87307103

WHEEL BOLT,M22 x 2.5 x 91mm

20шт.

15

13407211

LUBE NIPPLE,M10 x 1

2шт.

16

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

17

87307351

IDLER PINION

6шт.

18

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

19

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

62.4x76.4x32

6шт.

Выбрано товаров: 19
